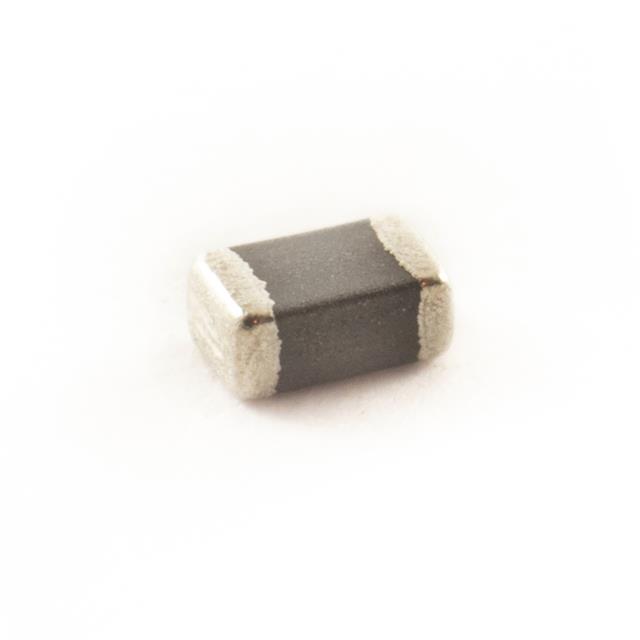

HCB20-301-RC

Chip Ferrite Bead Overview

The HCB20-301-RC is a high current ferrite bead manufactured by Allied Components International. It features an impedance of 300 ohms at 100 MHz and a maximum DC resistance of 15 milliohms. The component operates within a temperature range of -55°C to +125°C. Its physical dimensions are 3.20mm in length and 1.60mm in width, with a maximum height of 1.30mm.

Chip Ferrite Bead Feature Summary

• Designed for high current applications
• Provides effective noise suppression at 100 MHz

Chip Ferrite Bead Applications

• High current signal lines
• Power supply filtering

Chip Ferrite Bead Procurement Notes

Verify the specific impedance value and DC resistance against the official datasheet before procurement. Confirm that the package dimensions and thermal characteristics align with your design requirements. Ensure the component meets all necessary environmental standards for your intended application.

Chip Ferrite Bead Selection Notes

Select this component when high current handling and significant noise attenuation at 100 MHz are required. Consider the low DC resistance to minimize power loss. Evaluate the operating temperature range to ensure reliability under expected thermal conditions.

Chip Ferrite Bead Part Context

This part belongs to the HCB series of high current ferrite beads from Allied Components International. These components are engineered to suppress electromagnetic interference in circuits carrying substantial direct current while maintaining a compact surface-mount footprint.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available.
