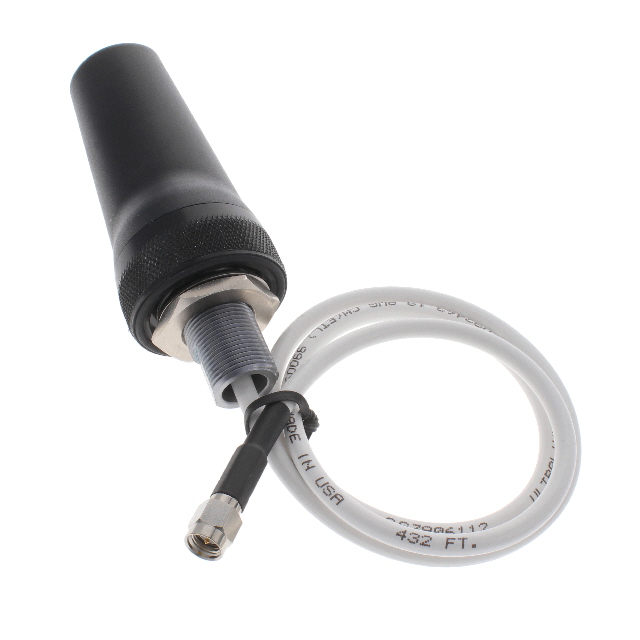

HCF69273BN-60A is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT OMNI BLACK SMA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HCF69273BN-60A
- Description：RF ANT OMNI BLACK SMA
- Series：-
- Mfr：TE Connectivity
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：Wide Band
- Frequency (Center/Band)：761MHz, 859MHz, 920MHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz
- Frequency Range：698MHz ~ 960MHz, 1.69GHz ~ 2.7GHz
- Antenna Type：Dome
- Number of Bands：8
- VSWR：2, 2.6
- Return Loss：-
- Gain：1.5dBi, 1.2dBi, 1.2dBi, 3.3dBi, 3.4dBi, 3.6dBi, 3.5dBi, 3.8dBi
- Features：Cable - 608mm
- Termination：SMA Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：3.150" (80.00mm)
- Applications：General Purpose
- Power - Max：10 W
Antennas RF datasheet and documents for HCF69273BN-60A
Antennas RF Overview
The HCF69273BN-60A is an omnidirectional RF antenna manufactured by TE Connectivity, designed for M2M and LTE applications. It features a top-loaded monopole configuration with a black finish and SMA connector interface. The unit supports nine frequency bands and operates within a temperature range of -30°C to +70°C. It has a power rating of 10 W and complies with RoHS standards.
Antennas RF Feature Summary
- Top-loaded monopole design for omnidirectional coverage
- SMA connector interface for direct integration
- Supports nine distinct frequency bands
- Rated for 10 W power handling
Antennas RF Applications
- Machine-to-Machine (M2M) communications
- LTE cellular networks
- HCF ULINK systems
Antennas RF Procurement Notes
Verify the specific SMA connector type and pin configuration against system requirements before ordering. Confirm that the nine-band frequency support aligns with regional network standards. Check current availability as lead times may vary. Ensure environmental ratings meet installation site conditions. Validate mechanical mounting dimensions for chassis compatibility.
Antennas RF Selection Notes
Select this model when omnidirectional radiation patterns are required for mobile or fixed M2M nodes. The top-loaded design aids in compact form factor integration. Verify impedance matching for the target application frequency. Consider the SMA interface for cable connectivity needs. Evaluate thermal performance limits for outdoor deployments.
Antennas RF Part Context
This component belongs to the HCF series of external antennas from TE Connectivity. It is engineered for robust wireless data transmission in industrial and commercial IoT environments. The product line emphasizes reliability across diverse cellular protocols.
Antennas RF Replacement Considerations
No public substitute part numbers are confirmed for this specific model.
