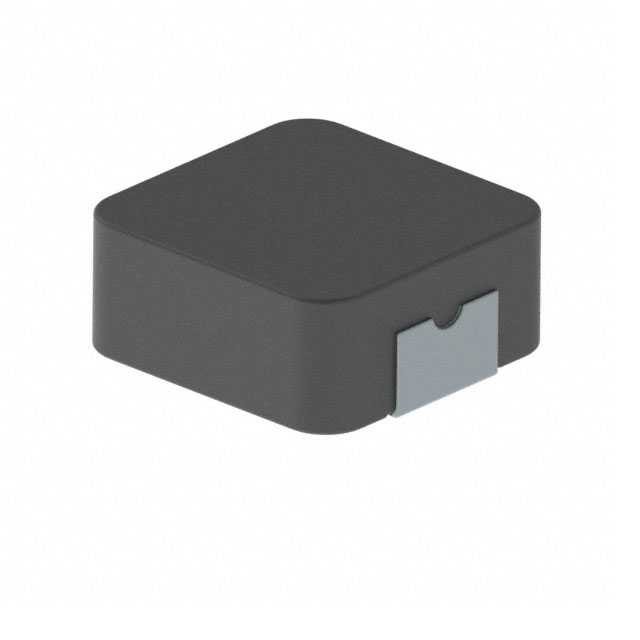

HCM1A1305V2-6R8-R is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is FIXED IND 6.8UH 9.5A 14MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for HCM1A1305V2-6R8-R
- Description：FIXED IND 6.8UH 9.5A 14MOHM SMD
- Series：HCM1AV2
- Mfr：Eaton - Electronics Division
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Iron Powder
- Inductance：6.8 µH
- Tolerance：±20%
- Current Rating (Amps)：9.5 A
- Current - Saturation (Isat)：15A
- Shielding：Shielded
- DC Resistance (DCR)：14mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：11MHz
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.530" L x 0.496" W (13.45mm x 12.60mm)
- Height - Seated (Max)：0.197" (5.00mm)
- Features：-
Fixed Inductors datasheet and documents for HCM1A1305V2-6R8-R
Fixed Inductors Overview
The Eaton HCM1A1305V2-6R8-R is a shielded surface-mount power inductor with an inductance of 6.8 µH and a tolerance of ±20%. It features a maximum DC current rating of 6.4 A and a saturation current of 9.0 A, with a maximum DC resistance of 19 mΩ. The component operates within a temperature range of -55°C to +155°C and utilizes an alloy powder core. It is AEC-Q200 qualified for automotive applications.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- High thermal stability supports demanding environments
- Automotive-grade reliability certification
Fixed Inductors Applications
- Automotive power conversion systems
- Industrial filtering circuits
- RF and EMI suppression modules
Fixed Inductors Procurement Notes
Verify the specific V2 suffix against the latest manufacturer documentation to confirm current availability and compliance status. Cross-reference the exact part number with official distributors to ensure authenticity and correct RoHS designation. Confirm lead times directly with authorized suppliers as stock levels fluctuate.
Fixed Inductors Selection Notes
Select this component for designs requiring high current handling and low DC resistance in space-constrained PCB layouts. Ensure the application current remains below the 6.4 A continuous rating to prevent overheating. Verify that the 6.8 µH value aligns with the target switching frequency requirements.
Fixed Inductors Part Context
This model belongs to the HCM1AV2 series of high-power chokes from Eaton Electronics. The series is engineered for robust performance in automotive and industrial sectors, offering consistent electrical characteristics across various inductance values within the same package footprint.
Fixed Inductors Replacement Considerations
Public confirmed substitute: HCM1A1305V3-7R8-R (for similar V2 form factor needs). Verify pin compatibility and electrical parameters before substitution.
