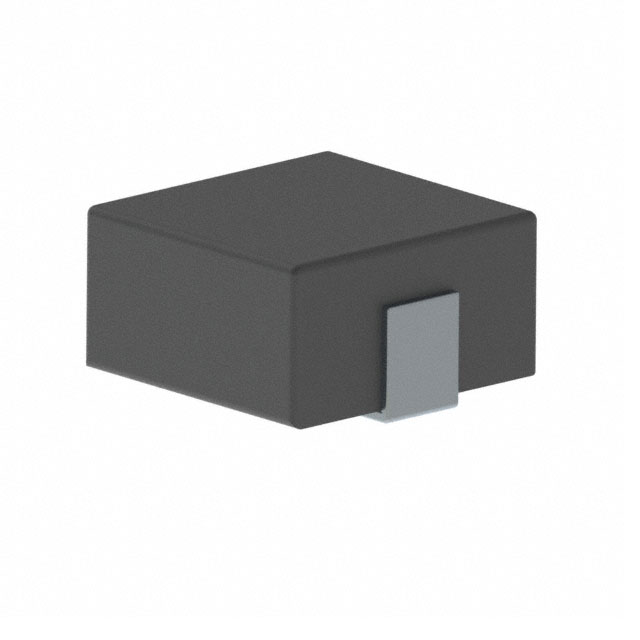

HCM1A4020V2-R56-R

$0.43

Description：FIXED IND 560NH 7.3A 15 MOHM SMD
Series：HCM1AV2
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR)

SKU:0f2198e59bf3 Category: Fixed Inductors Brand: Eaton - Electronics Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HCM1A4020V2-R56-R is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is FIXED IND 560NH 7.3A 15 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for HCM1A4020V2-R56-R

Description：FIXED IND 560NH 7.3A 15 MOHM SMD
Series：HCM1AV2
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR)
Type：-
Material - Core：Iron Powder
Inductance：560 nH
Tolerance：±20%
Current Rating (Amps)：7.3 A
Current - Saturation (Isat)：10A
Shielding：Shielded
DC Resistance (DCR)：15mOhm Max
Q @ Freq：-
Frequency - Self Resonant：95MHz
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 155°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard, 2 Lead
Supplier Device Package：-
Size / Dimension：0.173" L x 0.165" W (4.40mm x 4.20mm)
Height - Seated (Max)：0.079" (2.00mm)
Features：-

Fixed Inductors datasheet and documents for HCM1A4020V2-R56-R

HCM1A4020V2-R56-R

Fixed Inductors Overview

The Eaton HCM1A4020V2-R56-R is a shielded surface-mount power inductor with an inductance of 560 nH and a tolerance of ±20%. It features a maximum DC current rating of 7.3 A and a saturation current of 10 A, with a maximum DC resistance of 15 mΩ. The component operates within a temperature range of -55°C to +155°C and has a self-resonant frequency of 95 MHz at a test frequency of 100 kHz. Its physical dimensions are 4.4 mm x 4.2 mm x 1.8 mm, utilizing alloy powder core material.

Fixed Inductors Feature Summary

Shielded construction minimizes electromagnetic interference for stable circuit operation
Alloy powder core material supports high saturation current capabilities
Automotive qualification ensures reliability under demanding environmental conditions

Fixed Inductors Applications

Automotive electronic systems
High current power filtering applications
DC-DC converter circuits

Fixed Inductors Procurement Notes

Verify the specific suffix R56 confirms the 560 nH value during ordering. Confirm AEC-Q200 compliance requirements match project specifications. Check availability status as distribution may vary by region. Ensure PCB footprint matches the 4.4 mm x 4.2 mm package dimensions.

Fixed Inductors Selection Notes

Select this component when low profile and high current handling are required. Compare saturation current against peak load demands. Verify thermal performance within the specified operating temperature range. Consider the shielded design for noise-sensitive automotive environments.

Fixed Inductors Part Context

This part belongs to the HCM1AV2 series of high-power surface-mount inductors from Eaton Electronics. The series is designed for automotive applications requiring robust performance. It utilizes molded alloy powder cores for consistent electrical characteristics across varying temperatures.
