HCME1012D-331

Fixed Inductors Overview

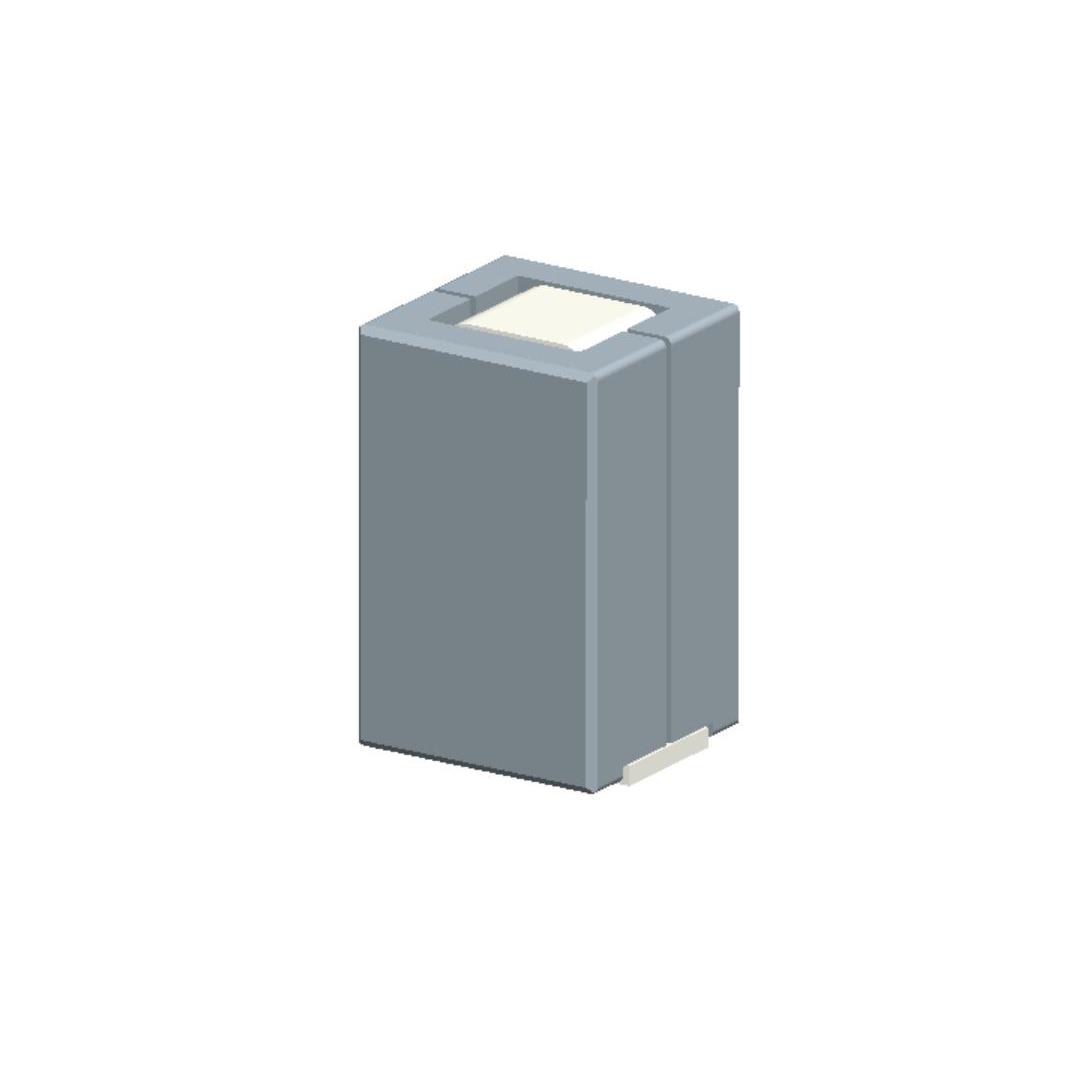

The HCME1012D-331 is a fixed surface-mount inductor manufactured by Delta Electronics/Components. It features an inductance of 330 nH and a low DC resistance of 0.125 mOhm. The component supports a saturation current of 33 A, ensuring stable performance under high-load conditions. Designed for compact power circuits, it utilizes a shielded structure to minimize electromagnetic interference. The device operates within a standard temperature range and complies with RoHS directives for environmental safety.

Fixed Inductors Feature Summary

• Shielded magnetic structure reduces external electromagnetic interference
• Low DC resistance enables efficient power transmission
• High saturation current capability supports demanding load requirements

Fixed Inductors Applications

• Point-of-load voltage regulation modules
• DC-DC converter input and output filtering
• Power distribution networks in computing hardware

Fixed Inductors Procurement Notes

Verify the specific suffix D against official Delta documentation to confirm pinout and tolerance specifications. Ensure the procurement channel provides valid manufacturer traceability. Cross-reference the part number with the latest datasheet to confirm active lifecycle status and compliance certifications before finalizing orders.

Fixed Inductors Selection Notes

Select this component when circuit design requires minimal footprint alongside high current handling capabilities. The low resistance value is critical for minimizing conduction losses in high-efficiency power stages. Evaluate thermal management requirements based on the 33 A saturation rating to ensure reliable operation under peak load scenarios.

Fixed Inductors Part Context

This component belongs to the HCME1012 series of fixed inductors from Delta Electronics. The series is engineered for dense PCB layouts in modern electronic devices. It serves as a key passive element in power management integrated circuits, providing necessary energy storage and noise suppression for stable voltage conversion.

Fixed Inductors Replacement Considerations

Check for direct substitutes such as HCME1012-331, verifying identical electrical parameters and physical dimensions. Confirm that alternative parts meet the same shielding and current rating requirements to maintain circuit integrity without redesigning the layout.
