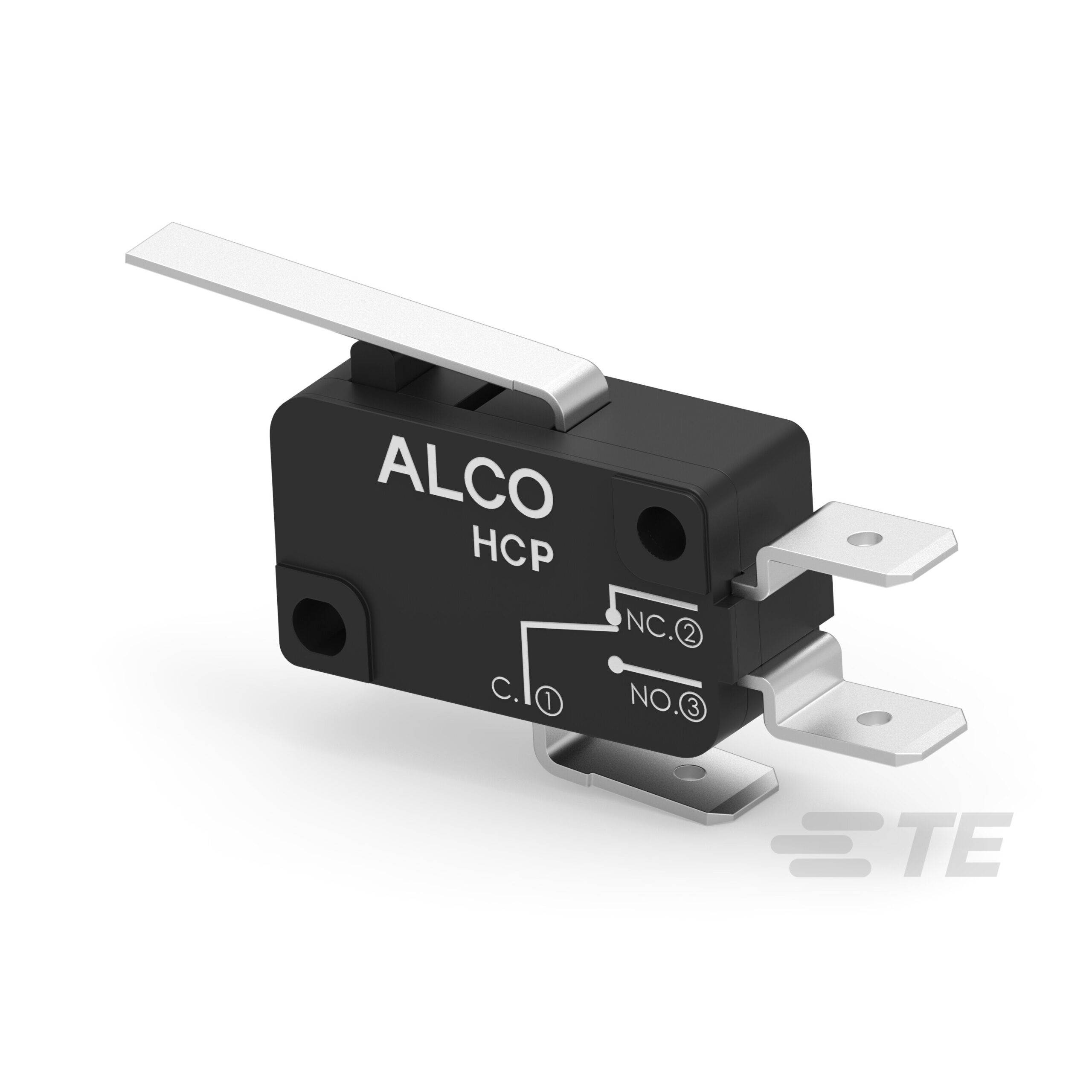

Limit Switches HCP20DTE2H04 product image

HCP20DTE2H04

$3.94

Description：SWITCH SNAP ACTION SPDT 20A 125V
Series：HCP
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tray

SKU:3c45d64fa7db Category: Limit Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HCP20DTE2H04 is listed in the Limit Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH SNAP ACTION SPDT 20A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for HCP20DTE2H04

Description：SWITCH SNAP ACTION SPDT 20A 125V
Series：HCP
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tray
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：20A (AC)
Voltage Rating - AC：125 V
Actuator Type：Lever, Straight
Mounting Type：Chassis Mount
Termination Style：Quick Connect - 0.250" (6.3mm)
Ingress Protection：-
Features：-
Operating Force：160gf
Release Force：-
Operating Position：0.602" (15.3mm)
Pretravel：0.234" (5.9mm)
Differential Travel：0.040" (1.0mm)
Overtravel：0.047" (1.2mm)
Operating Temperature：-40°C ~ 125°C
Voltage Rating - DC：-

Limit Switches datasheet and documents for HCP20DTE2H04

HCP20DTE2H04
