HCTC-2.4-17

$6.24

Description：CMC 2.4MH 17A 2LN TH
Series：HCTC
Mfr：Signal Transformer
Package：Tray

SKU:36a434855222 Category: Common Mode Chokes Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HCTC-2.4-17 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is CMC 2.4MH 17A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HCTC-2.4-17

Description：CMC 2.4MH 17A 2LN TH
Series：HCTC
Mfr：Signal Transformer
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：17A
DC Resistance (DCR) (Max)：8mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.700" L x 0.700" W (43.18mm x 17.78mm)
Height (Max)：1.650" (41.91mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.4 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HCTC-2.4-17

HCTC-2.4-17

Common Mode Chokes Overview

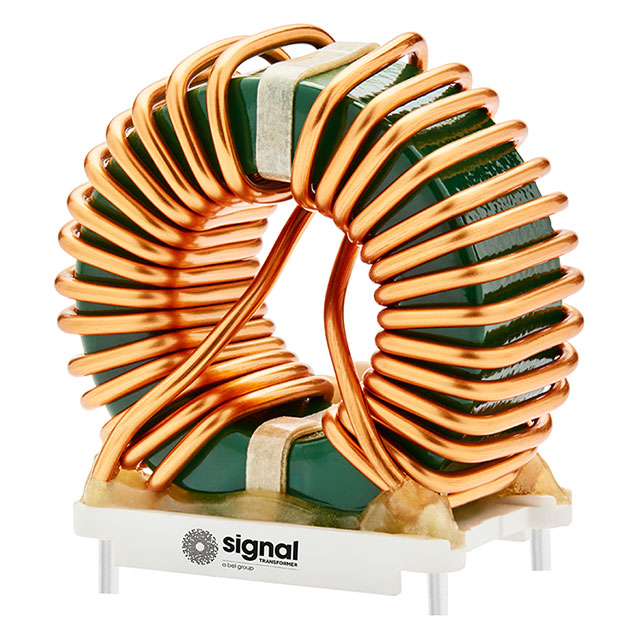

The HCTC-2.4-17 is a high-current toroidal common mode choke manufactured by Signal Transformer. It features a through-hole mounting configuration with two lines of windings. The component provides an inductance of 2.4 mH at 1 kHz and supports a maximum current rating of 17 A. Its DC resistance is specified as 8 mOhm, ensuring low power loss during operation. The device is designed for robust performance in applications requiring effective noise suppression in high-current circuits.

Common Mode Chokes Feature Summary

High current handling capability suitable for demanding power applications
Toroidal core design for efficient magnetic field containment
Through-hole construction for secure mechanical attachment

Common Mode Chokes Applications

Power supply input filtering
EMI noise suppression in AC/DC converters
Common mode interference reduction in industrial equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version from Signal Transformer or authorized distributors to confirm compliance with RoHS standards and lead times. Ensure that the through-hole package dimensions match your PCB layout requirements. Cross-reference part numbers carefully as variations may exist between manufacturers offering similar specifications. Confirm availability status directly with suppliers prior to ordering.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low DC resistance are critical for minimizing voltage drop and heat generation. The toroidal shape offers superior shielding compared to other core geometries. Consider the physical size constraints of the assembly process due to the through-hole requirement. Evaluate thermal management needs based on the 17 A rating and ambient operating conditions.

Common Mode Chokes Part Context

This component belongs to the family of high-current toroidal chokes produced by Signal Transformer. These devices are engineered for durability and consistent performance in harsh electrical environments. The product line emphasizes reliability for industrial and commercial power systems where stable filtering is essential for maintaining signal integrity and regulatory compliance.
