HCTSM80101AAL-E

$3.77

Description：XFMR 3.3-5V/3.3-15V,350MA PK TR
Series：HCT
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:dfc621b86bb9 Category: Pulse Transformers Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR 3.3-5V/3.3-15V,350MA PK TR
Series：HCT
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：-
Inductance：250µH
ET (Volt-Time)：11.0VµS
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.484" L x 0.425" W (12.30mm x 10.80mm)
Height - Seated (Max)：0.256" (6.50mm)
Operating Temperature：-40°C ~ 125°C
Grade：Automotive
Qualification：AEC-Q200

Download product information

HCTSM80101AAL-E

Overview

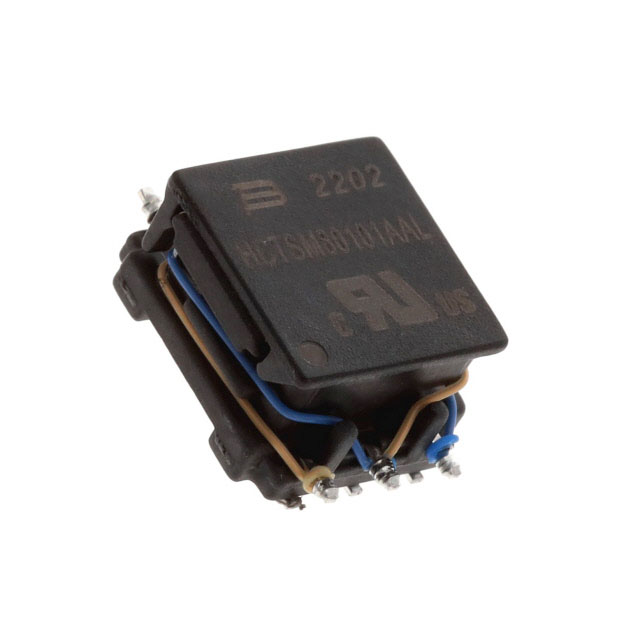

The HCTSM80101AAL-E is a board-mount power transformer from Bourns, designed for high clearance and creepage distance applications. It features a 1:1 turns ratio and an inductance of 250 uH. The secondary current rating is 350 mA pk, with a voltage-time product (Et) of 11 V/us. Operating within a temperature range of -40 C to +125 C, it meets AEC-Q200 automotive qualification standards. The component utilizes SMD/SMT termination and is available in Reel, Cut Tape, and MouseReel packaging formats.

Feature Summary

Designed for high clearance and creepage distance requirements
Automotive-grade qualification compliant with AEC-Q200 standards
Surface mount construction for PCB integration

Applications

Automotive-grade power supply circuits
Isolated power interface designs
Data interface isolation applications

Procurement Notes

Verify the specific suffix against official Bourns documentation to confirm exact electrical characteristics and package configuration. Ensure the selected variant matches the required AEC-Q200 automotive grade specifications for the target application environment. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and lead times prior to ordering.

Selection Notes

Select this component when high insulation clearance and creepage distances are critical for safety compliance in automotive or industrial environments. The 1:1 ratio and 350 mA secondary rating suit isolated power transfer needs. Consider the -40 C to +125 C operating range for harsh thermal conditions. Surface mount packaging facilitates automated assembly processes.

Part Context

This transformer belongs to the HCTSM8 series by Bourns, which specializes in high-clearance magnetic components. The series targets automotive and demanding industrial markets requiring robust isolation. It complements other Bourns magnetics products like flyback transformers and signal transformers in comprehensive power management solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult Bourns engineering support for direct replacements.
