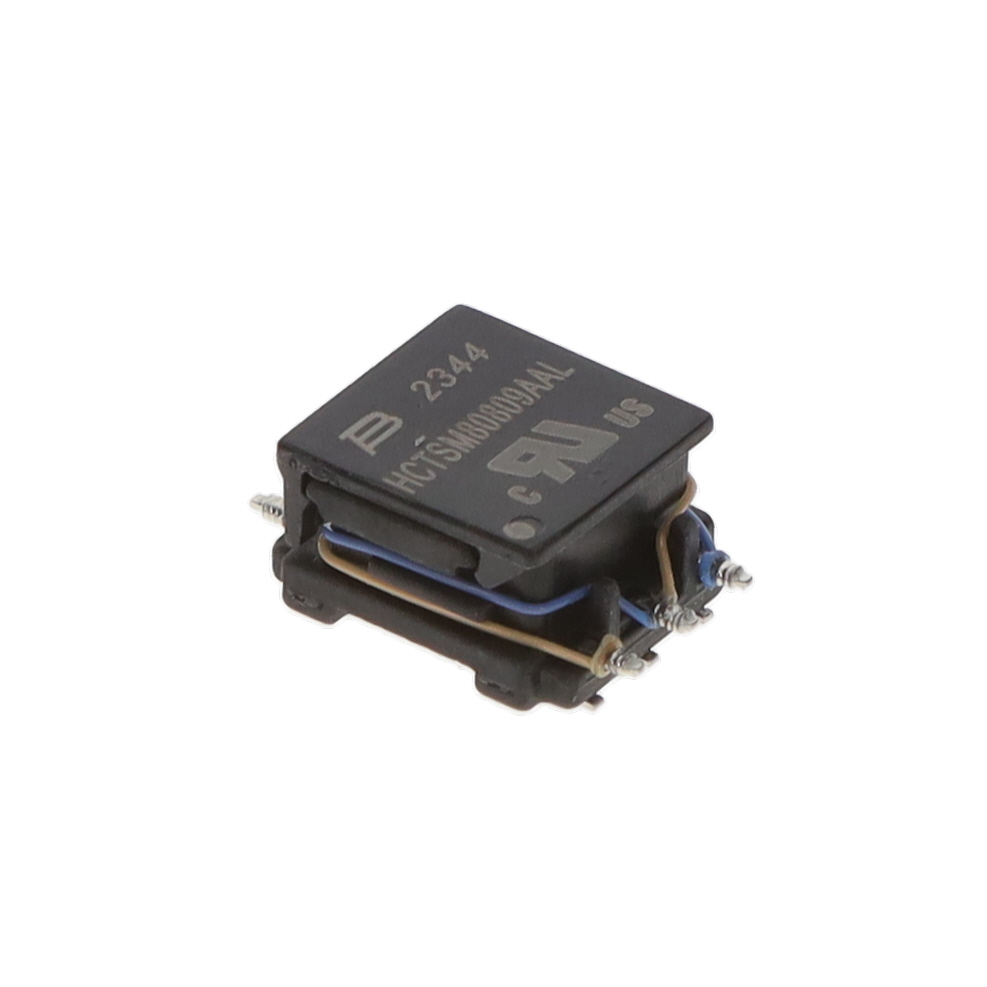

HCTSM80809AAL-E1

$4.51

Description：XFMR 3.3-5V/3.3-15V,350MA PK TR
Series：HCT
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5637dc950735 Category: Pulse Transformers Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR 3.3-5V/3.3-15V,350MA PK TR
Series：HCT
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：Isolation and Data Interface (Encapsulated)
Inductance：250µH
ET (Volt-Time)：11.0VµS
Turns Ratio - Primary:Secondary：8:09
Mounting Type：Surface Mount
Size / Dimension：0.484" L x 0.425" W (12.30mm x 10.80mm)
Height - Seated (Max)：0.256" (6.50mm)
Operating Temperature：-40°C ~ 125°C
Grade：-
Qualification：-

Download product information

HCTSM80809AAL-E1

Overview

The HCTSM80809AAL-E1 is a board-mount power transformer from Bourns, designed for automotive applications. It features a single primary and single secondary winding with an 8:9 turns ratio. The component has dimensions of 12.3 mm length, 10.8 mm width, and 6.5 mm height. It operates within a temperature range of -40°C to +125°C and carries AEC-Q200 qualification. Key electrical parameters include 250 µH inductance, 350 mA secondary current rating, and 11 V/us voltage-time product.

Feature Summary

High clearance and creepage distance design for enhanced isolation safety
Encapsulated construction for environmental protection and mechanical stability
Surface mount technology (SMD/SMT) installation style for automated assembly

Applications

Automotive electronic systems requiring isolated power conversion
Data interface circuits utilizing pulse transformers
Power supply modules operating within extended industrial temperature ranges

Procurement Notes

Verify the specific suffix E1 against official Bourns documentation to confirm exact pinout and packaging configuration. Confirm AEC-Q200 compliance status through the manufacturer datasheet. Check for end-of-life notifications or production discontinuance notices prior to finalizing procurement plans.

Selection Notes

Select this component when high isolation voltage and compact SMD form factor are required for automotive-grade designs. Ensure the 8:9 turns ratio aligns with the target voltage transformation requirements. Verify that the 350 mA secondary current rating meets the load demands of the application circuit.

Part Context

This part belongs to the HCTSM8 series of high clearance and creepage distance transformers manufactured by Bourns Inc. These components are specifically engineered for robust performance in demanding environments, offering reliable isolation characteristics suitable for modern automotive and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Bourns documentation for potential cross-references or updated series replacements.
