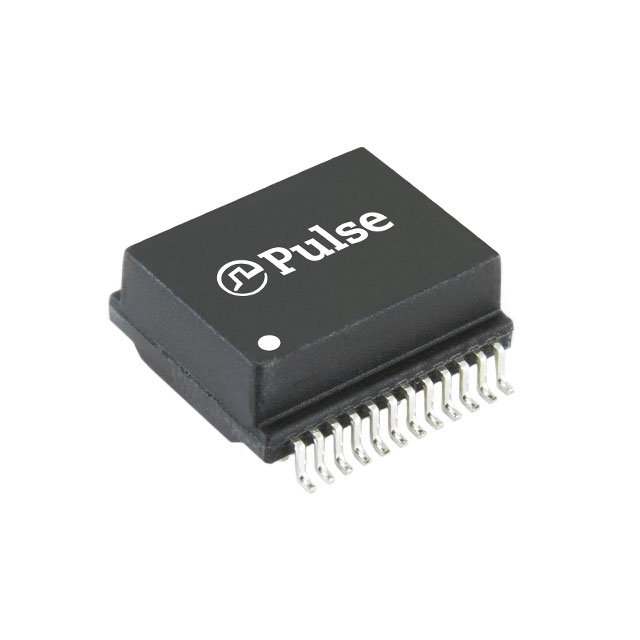

HD8008NL

Overview

The HD8008NL is a single-port audio and signal transformer module designed for HDBase-T applications. It features surface-mount technology (SMD) with an unshielded construction. The component operates within a temperature range of 0°C to 70°C and has a maximum seated height of 5.97 mm. It is RoHS compliant and lead-free, intended for integration into compact electronic systems requiring HDBase-T connectivity.

Feature Summary

• Designed specifically to support HDBase-T standards
• Surface-mount configuration for automated assembly
• Single-port architecture for signal transmission

Applications

• HDBase-T system integration
• Valens chipset-based designs
• Audio and signal transformer modules

Procurement Notes

Verify the specific datasheet version and environmental compliance documentation prior to procurement. Confirm that the unshielded design aligns with the electromagnetic interference requirements of the target application. Ensure compatibility with the specified operating temperature range of 0°C to 70°C for the final product environment.

Selection Notes

Select this component when a single-port HDBase-T solution is required. The SMD package facilitates space-constrained layouts. Consider the unshielded nature of the device regarding circuit layout and potential interference. Validate that the thermal performance meets the operational demands of the host system.

Part Context

This part belongs to the HD800 series of transformers from Pulse Electronics. These components are specialized for high-definition baseband transmission over standard cabling. The series supports various port configurations and shielding options to meet diverse networking and multimedia interface requirements.

Replacement Considerations

Consult official substitution lists for verified alternatives. Generic replacements may not match the specific HDBase-T tuning or Valens chipset compatibility.
