HDASE041YD6A-000LF

Overview

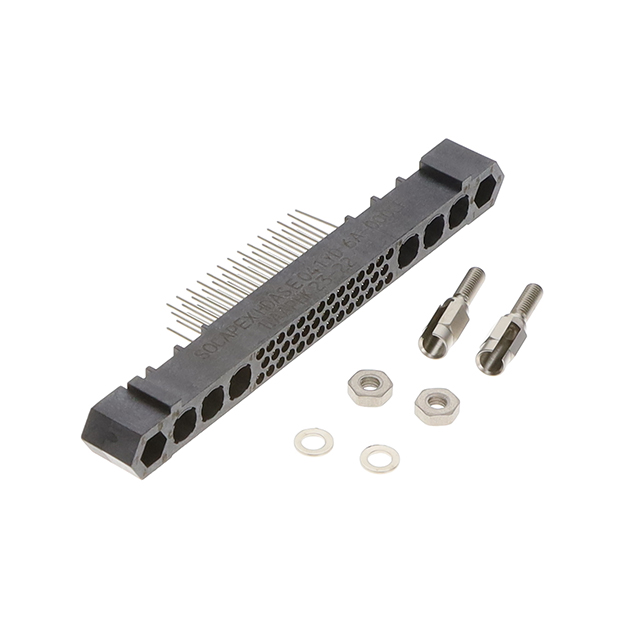

The HDASE041YD6A-000LF is a 41-position hybrid receptacle connector from the Amphenol HDAS series. It features a 1.905 mm (0.075 inch) pitch with three rows of female socket contacts. The unit supports a voltage rating of 750V and a current capacity of 4.5A. Constructed with gold-plated copper alloy contacts and a glass-filled thermoplastic liquid crystal polymer housing, it offers robust performance across an operating temperature range of -65°C to +125°C. Designed for PCB mounting via through-hole solder termination, this straight connector ensures reliable board-to-board interconnection in demanding environments.

Feature Summary

• Hybrid construction combining power and signal capabilities within a single compact receptacle
• High dielectric strength rated for 750V operation with durable gold-plated contact surfaces
• Thermally stable housing material engineered for extreme temperature resilience

Applications

• Military aerospace avionics systems requiring high-density interconnects
• Satellite communication equipment needing reliable board-to-board connections
• Industrial machinery control units operating in harsh environmental conditions

Procurement Notes

Verify the specific suffix configuration against official Amphenol datasheets to ensure compatibility with mating headers. Confirm that the through-hole termination style matches your printed circuit board layout requirements. Check for RoHS compliance status if restricted substances are a concern for your assembly process. Ensure the straight orientation aligns with your mechanical design constraints before finalizing procurement orders.

Selection Notes

Select this component when high voltage isolation and dense pin counts are required in a limited footprint. The 1.905mm pitch allows for significant connectivity without excessive board space consumption. Consider the thermal stability of the LCP housing if the application involves high-temperature soldering or operation. Verify that the 4.5A current rating meets the electrical load requirements of your specific circuit design.

Part Context

This part belongs to the HDAS series, which provides hybrid solutions for aerospace and industrial sectors. The manufacturer specializes in rugged connectors for military and satellite applications. This specific model represents a standard straight-mount option within the lineup, offering a balance between density and electrical performance for critical infrastructure.

Replacement Considerations

Consult official cross-reference guides for compatible alternatives. Ensure any substitute maintains the same 1.905mm pitch and 41-pin configuration. Verify that replacement parts match the voltage and current ratings to prevent system failure.
