HDASE152YD-000LF

Overview

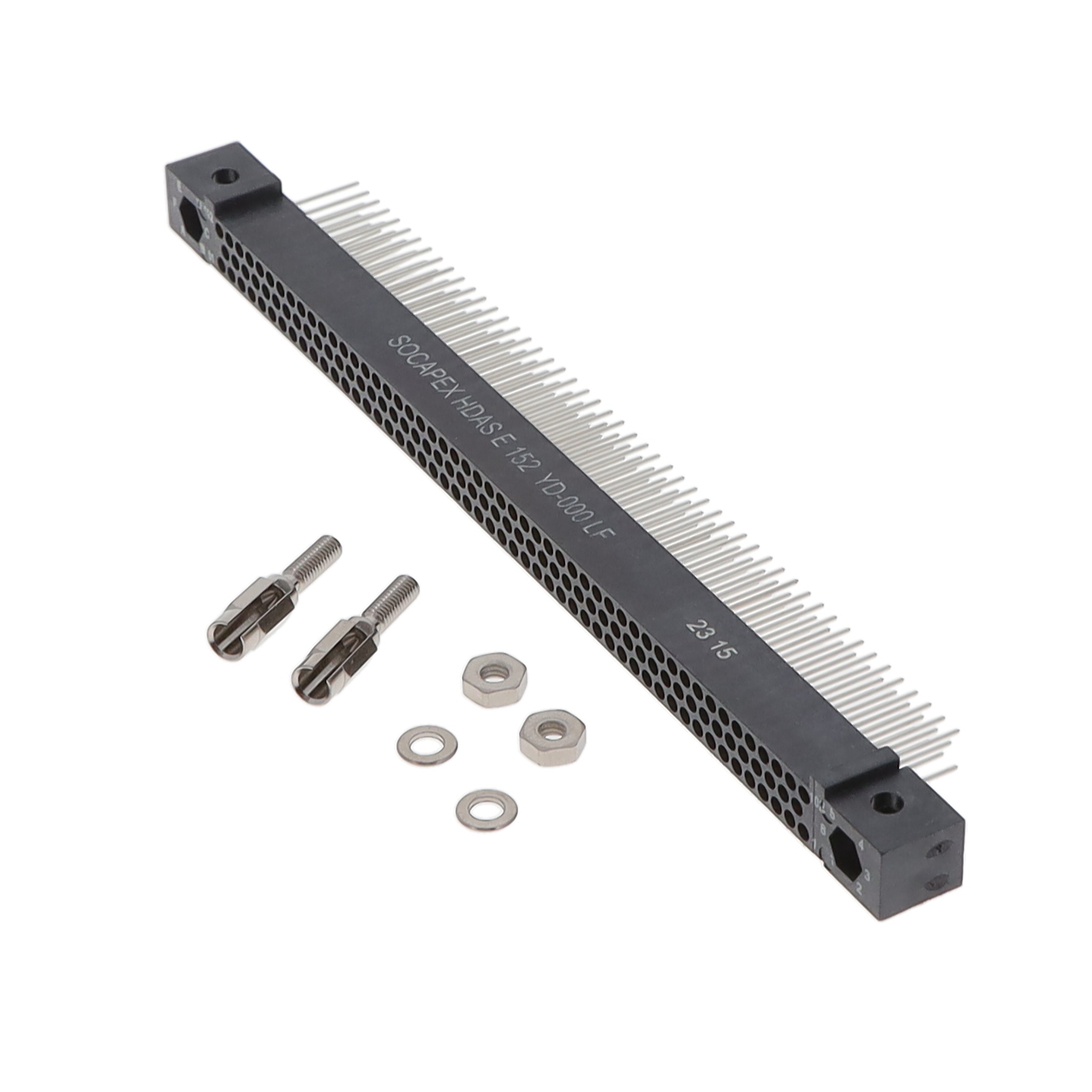

The HDASE152YD-000LF is a high-performance PCB receptacle from the Amphenol HDAS series, designed for harsh environments. It features a straight mounting configuration with jackscrews and mating flanges. The connector supports a current rating of 4.5A per contact and utilizes tin-plated contacts. Constructed with LCP material, it accommodates various welding types, including high-temperature processes, ensuring compliance with lead-free requirements.

Feature Summary

• Utilizes cylindrical machined pins and star-clamp technology for reliable signal transmission in high-density applications.
• Features side rails on male connectors to protect contacts from external damage during operation.
• Engineered with LCP materials to withstand extreme temperatures and high vibration levels exceeding MIL-DTL-55302 standards.

Applications

• Commercial aerospace avionics and instrumentation systems
• Aircraft power distribution networks
• Harsh environment industrial control interfaces

Procurement Notes

Verify that the specific part number matches the required straight PCB receptacle configuration with jackscrew locking. Confirm that the tin contact finish aligns with your assembly process requirements. Ensure the LCP material compatibility supports your specific soldering profile, particularly if utilizing high-temperature lead-free processes. Cross-reference the 4.5A per contact rating against your circuit load demands to ensure adequate performance margins.

Selection Notes

Select this component when space constraints require high contact density within a rectangular form factor. Consider this model for applications demanding superior mechanical protection via side rails and robust thermal stability. The inclusion of jackscrews makes it suitable for installations requiring secure locking mechanisms under high-vibration conditions. Evaluate the straight orientation against panel thickness and cable entry requirements.

Part Context

This component belongs to the HDAS series, which emphasizes reliability and simplicity for military and commercial aerospace markets. The series is characterized by reduced spacing and increased contact density compared to traditional connectors. It is specifically engineered to address weight reduction and installation simplification needs while maintaining performance in extreme operational conditions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing panel cutouts and mating connectors before considering alternative models from the same manufacturer or other suppliers.

FAQ

What material is used for the connector housing?

The connector utilizes Liquid Crystal Polymer (LCP) material, which supports all welding types including high-temperature processes and meets lead-free requirements.

How does the design protect contacts from damage?

Male connectors feature side rails that ensure optimal protection for contacts against external physical damage during mating and operation.
