Product Detailed Parameters

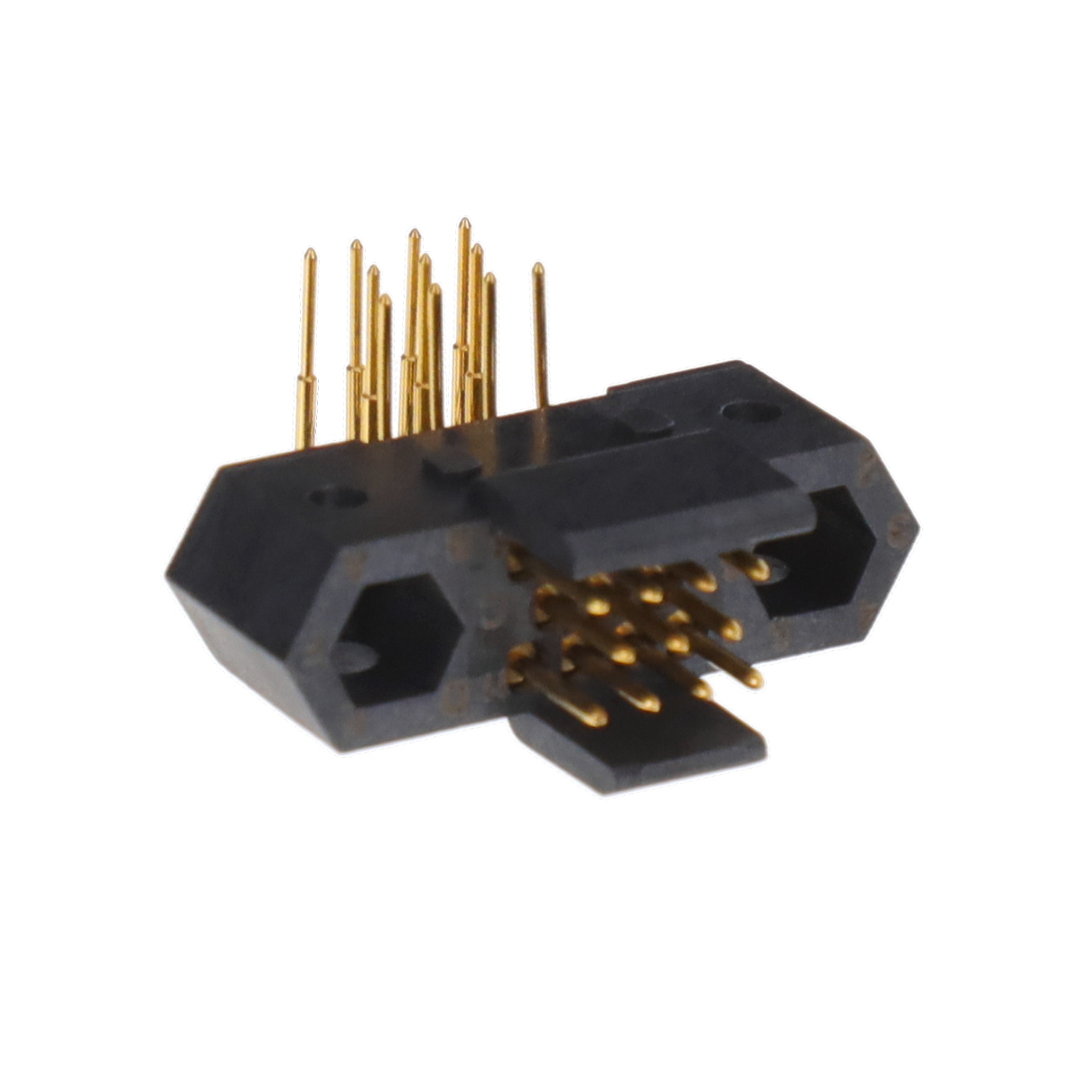

- Description：HDAS PLUG 11 RIGHT ANGLE PC TAIL
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：11
- Number of Rows：3
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.157" (4.00mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview
The HDASF011YC-000 is a rectangular MIL Spec connector plug manufactured by Amphenol Aerospace Operations. It features an 11-position configuration with right-angle PC tail contacts designed for through-hole mounting. The component utilizes a pitch of 1.91 mm (0.075 inches) and operates within a temperature range extending down to -65°C. This part belongs to the HDAS series, providing reliable interconnection solutions in compliance with military specifications.
Feature Summary
- Rectangular MIL Spec design for rugged environments
- Right-angle PC tail contact configuration
- Through-hole mounting capability
- 11-position signal interconnection
Applications
- Military avionics systems
- Defense communication equipment
- Rugged industrial control panels
Procurement Notes
Verify the specific datasheet version from Amphenol Aerospace Operations to confirm current material composition and environmental ratings. Ensure compatibility with mating receptacles in the HDAS series. Check for any recent regulatory updates regarding RoHS compliance or lead-free status before finalizing procurement orders.
Selection Notes
Select this component when a right-angle rectangular MIL Spec connector is required for PCB integration. The 11-position count and 1.91 mm pitch are critical constraints. Consider the -65°C minimum operating temperature for cold-environment deployments. Validate that the PC tail contact style matches the target board layout requirements.
Part Context
This part is part of the HDAS series of rectangular connectors from Amphenol Aerospace Operations. The series is known for high-density interconnects in military and aerospace applications. The 'YC' suffix typically denotes specific housing or contact variations within the product line, ensuring standardized mechanical interfaces across compatible components.
