Product Detailed Parameters
- Description：HDAS PLUG 11 STRAIGHT PC TAIL CO
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：11
- Number of Rows：3
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.264" (6.71mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview

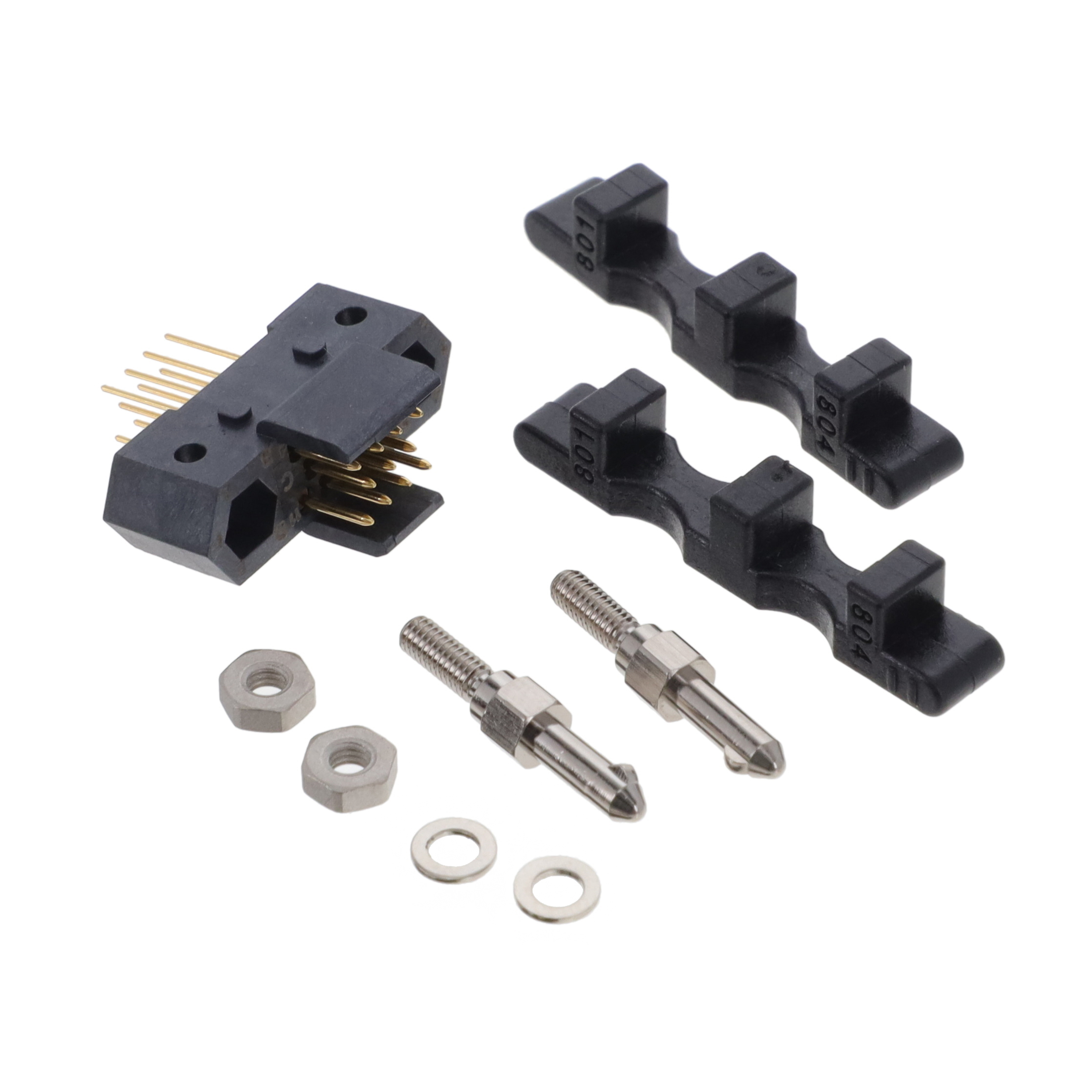

The HDASF011YD-000 is a straight plug connector from the Amphenol Aerospace HDAS series, designed for printed circuit board (PCB) mounting. It features a PC tail configuration with 11 contacts and utilizes a mating flange for secure installation. The unit operates within a temperature range of -65°C to 150°C and incorporates black insulation rated UL94 V-0 for fire safety. This component serves as a robust interconnection solution for aerospace and industrial applications requiring reliable signal transmission in demanding environments.
Feature Summary
- Straight plug design with PC tail termination for direct PCB integration
- Mating flange construction ensures secure mechanical alignment during connection
- Black insulation material provides UL94 V-0 flammability rating for enhanced safety
Applications
- Aerospace avionics systems
- Military communication equipment
- Industrial control panels
Procurement Notes
Verify the specific contact configuration and pinout against the official manufacturer datasheet before procurement. Confirm that the straight PC tail form factor aligns with your PCB layout requirements. Ensure the operating temperature range meets your environmental specifications. Cross-reference the part number with authorized distributors to guarantee authenticity and traceability.
Selection Notes
Select this model when a straight-mount plug with 11 positions is required for high-reliability applications. The HDAS series offers rugged performance suitable for harsh environments. Consider the PC tail style for efficient assembly processes. Evaluate the -65°C to 150°C operational range against your system's thermal demands to ensure long-term stability.
Part Context
This component belongs to the HDAS series by Amphenol Aerospace Operations, which specializes in circular connectors for severe service conditions. The series is engineered for aerospace and defense sectors, emphasizing durability and consistent electrical performance. The HDASF011YD-000 variant specifically addresses needs for compact, multi-pin interconnections with robust mechanical locking capabilities.
Replacement Considerations
Consult the official Amphenol cross-reference guide for verified substitute part numbers. Ensure any replacement matches the 11-position count, straight orientation, and PC tail termination style. Verify compatibility with existing mating receptacles and panel cutouts.
