Product Detailed Parameters
- Description：HDAS PLUG 20 RIGHT ANGLE PC TAIL
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：20
- Number of Rows：3
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.157" (4.00mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview

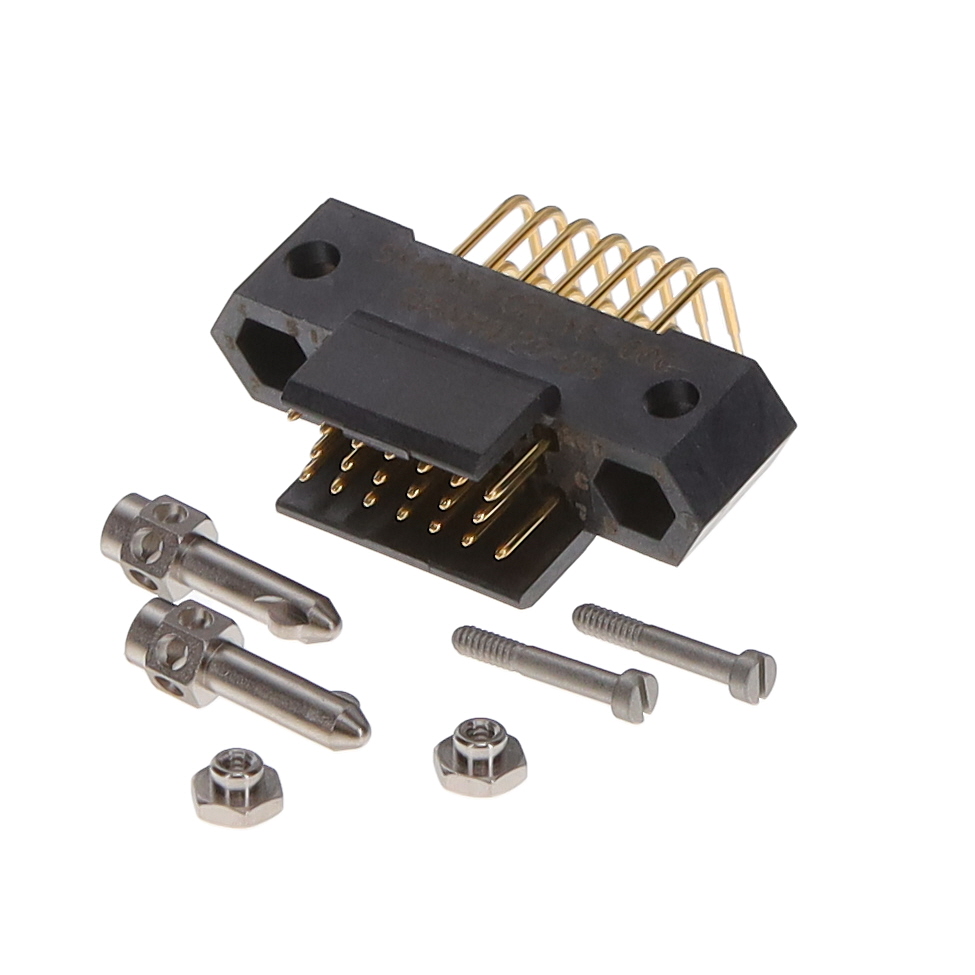

The HDASF020YC-000 is a connector header manufactured by Amphenol Aerospace Operations. It features a through-hole mounting style with a right-angle orientation. The component provides 20 positions for electrical interconnection. The contact spacing is specified as 0.075 inches, which corresponds to 1.91 millimeters.
Feature Summary
- Right-angle header configuration for PCB mounting
- Through-hole termination method
- 20-position layout
Applications
- Commercial aerospace avionics systems
- Aircraft power distribution networks
- In-flight entertainment system interconnects
Procurement Notes
Verify the specific part number against official Amphenol Aerospace Operations documentation to confirm compatibility with required circuit board layouts and mating connectors. Ensure that the through-hole right-angle design aligns with mechanical constraints of the target assembly. Confirm that the 20-position count matches the intended signal or power requirements before finalizing procurement orders.
Selection Notes
Select this component when a rigid, right-angle connection is required for high-reliability environments. The 0.075-inch pitch accommodates standard wiring harnesses while maintaining a compact profile. Consider the through-hole installation method for robust mechanical retention in aerospace applications where vibration resistance is critical for long-term operational stability.
Part Context
This component belongs to the HDAS series of circular connectors designed by Amphenol Aerospace Operations. The series is engineered for commercial aerospace markets, providing reliable interconnect solutions for aircraft systems. These connectors are built to withstand harsh environmental conditions typical of aviation operations, ensuring consistent performance throughout the service life of the equipment.
Replacement Considerations
Consult official Amphenol Aerospace Operations substitution guides for verified equivalent part numbers. Verify pinout compatibility and mechanical dimensions before replacing existing units in production assemblies.
