Product Detailed Parameters
- Description：HDAS PLUG 41 RIGHT ANGLE PC TAIL
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：41
- Number of Rows：3
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.157" (4.00mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview

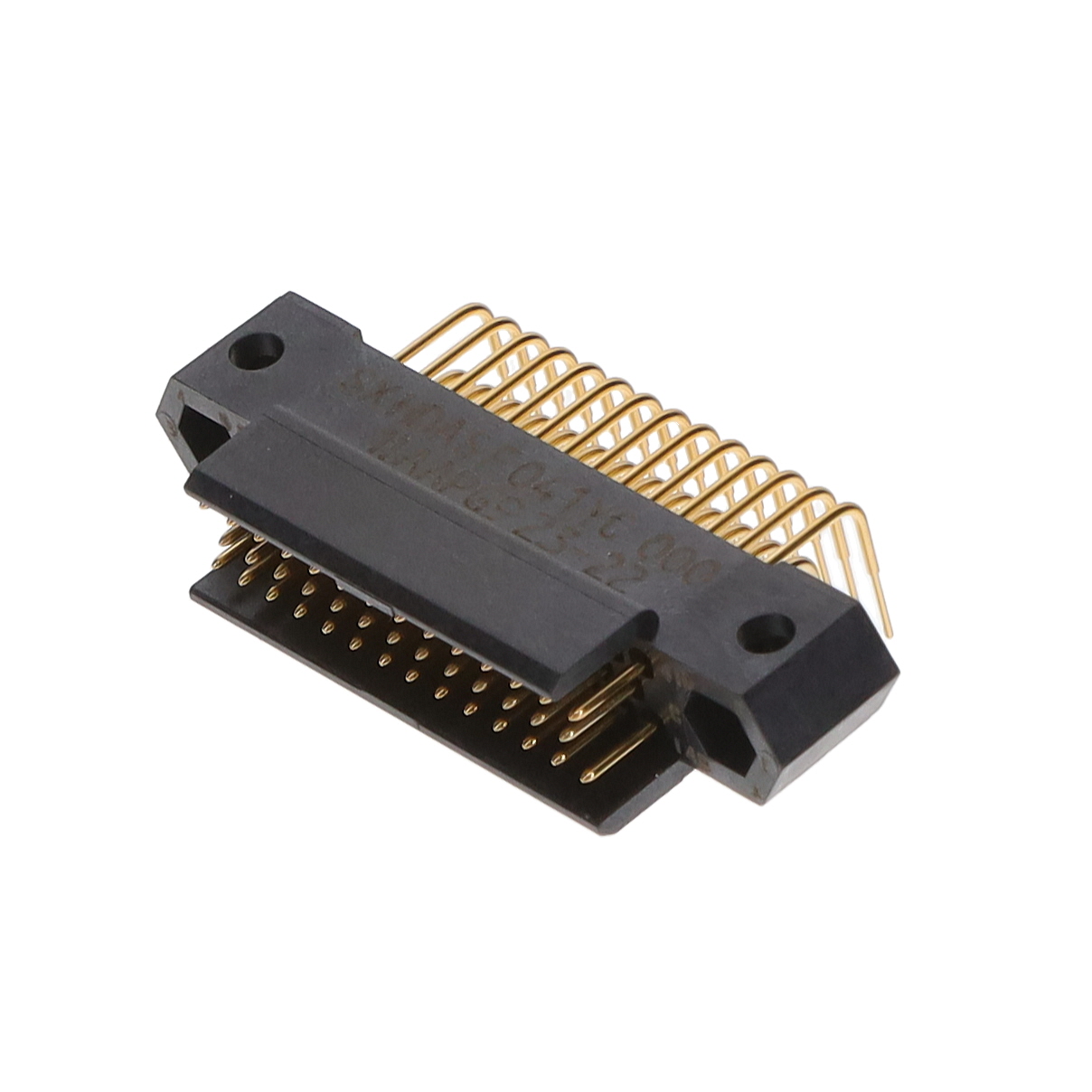

The HDASF041YC-000 is a rectangular MIL-Spec connector from the Amphenol HDAS series, designed for board-to-board applications. It features a 41-position configuration with three rows and a 1.905 mm pitch. The component utilizes gold-plated copper alloy pin contacts and a liquid crystal polymer (LCP) housing. Rated for 750 V and 4.5 A, it supports solder termination on PCBs. Operating temperatures range from -65 °C to +150 °C, with an insulation resistance of 5 GOhms.
Feature Summary
- Complies with MIL-DTL-55302G military specifications for rugged performance
- Utilizes right-angle PC tail contacts for efficient PCB mounting
- Features shrouded design with two-wall protection
Applications
- Aerospace avionics systems
- Military communication equipment
- Ruggedized electronic assemblies
Procurement Notes
Verify the specific manufacturer designation, as sources list both Amphenol Socapex and Amphenol Aerospace Operations. Confirm RoHS compliance details directly with the supplier. Ensure the ordering suffix matches the required contact type and orientation. Request the official datasheet PDF to validate electrical ratings against your system requirements before finalizing procurement.
Selection Notes
Select this part for high-density interconnects requiring MIL-DTL-55302G certification. The 41-pin layout suits complex signal routing in constrained spaces. Verify that the 1.905 mm pitch aligns with your PCB footprint. Consider the 150 °C thermal rating for high-temperature environments. Ensure mating connectors match the shrouded two-wall configuration.
Part Context
This component belongs to the HDAS series of hybrid plugs manufactured by Amphenol. The series provides reliable interconnection solutions for demanding industrial and aerospace sectors. The HDASF041YC-000 variant specifically offers a right-angle form factor suitable for vertical PCB integration within military-grade hardware frameworks.
Replacement Considerations
HDASF041YC6A-000
FAQ
What is the contact plating material?
The contacts are gold-plated copper alloy.
Does this connector meet military standards?
Yes, it complies with MIL-DTL-55302G specifications.
