Product Detailed Parameters
- Description：HDAS HYBRID PLUG 41 RIGHT ANGLE
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：47
- Number of Rows：3
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：41
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.157" (4.00mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview

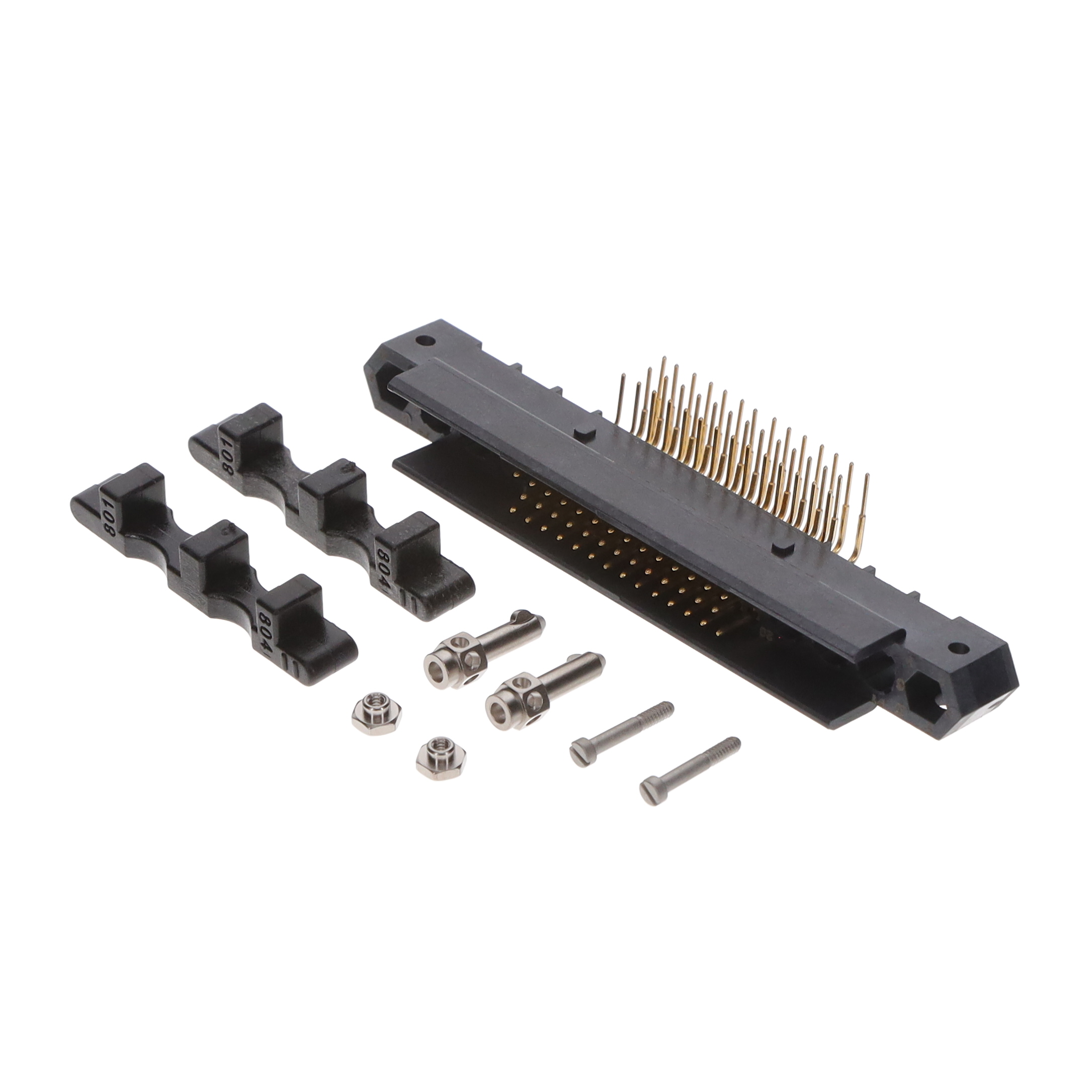

The Amphenol HDASF041YC6A-000 is a rectangular MIL-DTL-55302G hybrid plug connector featuring 41 positions across three rows. It utilizes gold-plated copper alloy male pin contacts with a 1.905 mm pitch and solder termination for PCB mounting. The housing is constructed from liquid crystal polymer (LCP), supporting a maximum operating temperature of +150°C and a minimum of -65°C. Rated for 750 V and 4.5 A, it offers an insulation resistance of 5 GOhms.
Feature Summary
- Hybrid construction integrating signal and power contacts within a single MIL-DTL-55302G compliant housing.
- Right-angle PCB mount design facilitates efficient board space utilization in dense assemblies.
- Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance in harsh environments.
Applications
- Avionics systems requiring high-density interconnects
- Defense communication equipment
- Radar and guidance systems
- Harsh environment industrial control units
Procurement Notes
Verify the specific suffix '6A' against the manufacturer's current datasheet to confirm exact contact configuration and material specifications. Ensure compatibility with mating receptacles within the HDAS series. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region.
Selection Notes
Select this component when a right-angle, 41-position hybrid solution is required under MIL-DTL-55302G standards. Consider the 1.905 mm pitch and LCP housing for thermal stability up to 150°C. Evaluate the 4.5 A current rating and 750 V voltage limit against system requirements before finalizing the design.
Part Context
This part belongs to the Amphenol HDAS series of rectangular military specification connectors. The series is designed for high-reliability applications in aerospace and defense sectors, offering various configurations for signal and power transmission in demanding operational conditions.
Replacement Considerations
Direct replacements must adhere to MIL-DTL-55302G specifications. Verify pinout compatibility and mechanical dimensions with equivalent parts from other qualified manufacturers before substitution.
