Product Detailed Parameters
- Description：HDAS PLUG 102 RIGHT ANGLE PC TAI
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：102
- Number of Rows：4
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.157" (4.00mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview

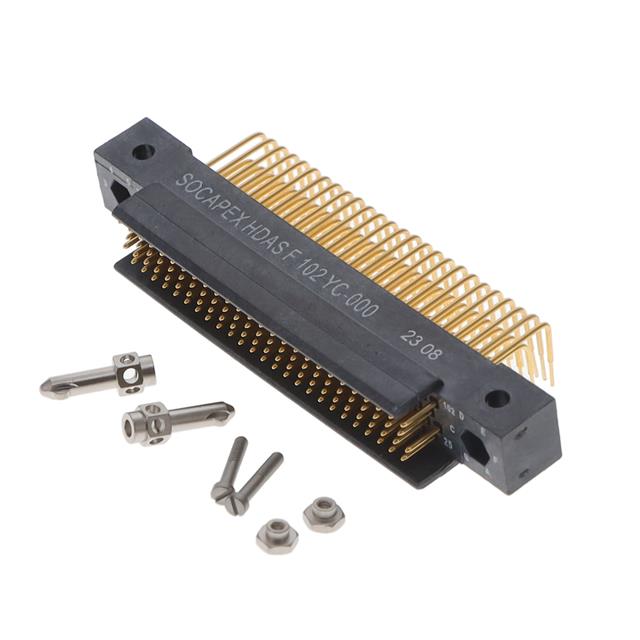

The HDASF102YC-000 is a right-angle header connector manufactured by Amphenol Aerospace Operations. It features a through-hole mounting style and accommodates 102 positions. The connector utilizes a 0.075-inch (1.91mm) pitch for signal transmission. This component is designed for reliable electrical interconnection in aerospace and industrial applications, ensuring stable performance under operational conditions.
Feature Summary
- Right-angle PCB header configuration for space-efficient board layout
- Through-hole termination method for secure mechanical attachment
- High-density 102-position arrangement for extensive signal routing
Applications
- Aerospace avionics systems
- Military electronic equipment
- Industrial control panels
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with Amphenol Aerospace Operations before procurement. Confirm that the right-angle pin configuration matches the target PCB footprint requirements. Ensure environmental ratings align with the intended operational temperature range and vibration standards for the specific application environment.
Selection Notes
Select this component when a high-pin-count, right-angle interconnect solution is required for rigid PCB assemblies. Consider the 1.91mm pitch spacing to ensure adequate clearance for adjacent components. Evaluate the through-hole mounting requirement against surface-mount alternatives if board thickness or stress relief needs differ from standard header specifications.
Part Context
This part belongs to the HDAS series of connectors produced by Amphenol Aerospace Operations. The series focuses on providing robust interconnect solutions for demanding environments. Amphenol Aerospace specializes in QPL Mil-spec and custom circular and rectangular connectors for military and aerospace sectors, emphasizing reliability and precision engineering in their product lines.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching the 102-position count, 1.91mm pitch, and right-angle through-hole form factor. Consult Amphenol Aerospace Operations for potential obsolescence management or direct equivalent recommendations based on current inventory.
