Product Detailed Parameters
- Description：HDAS PLUG 102 STRAIGHT PC TAIL C
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：102
- Number of Rows：4
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.264" (6.71mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview

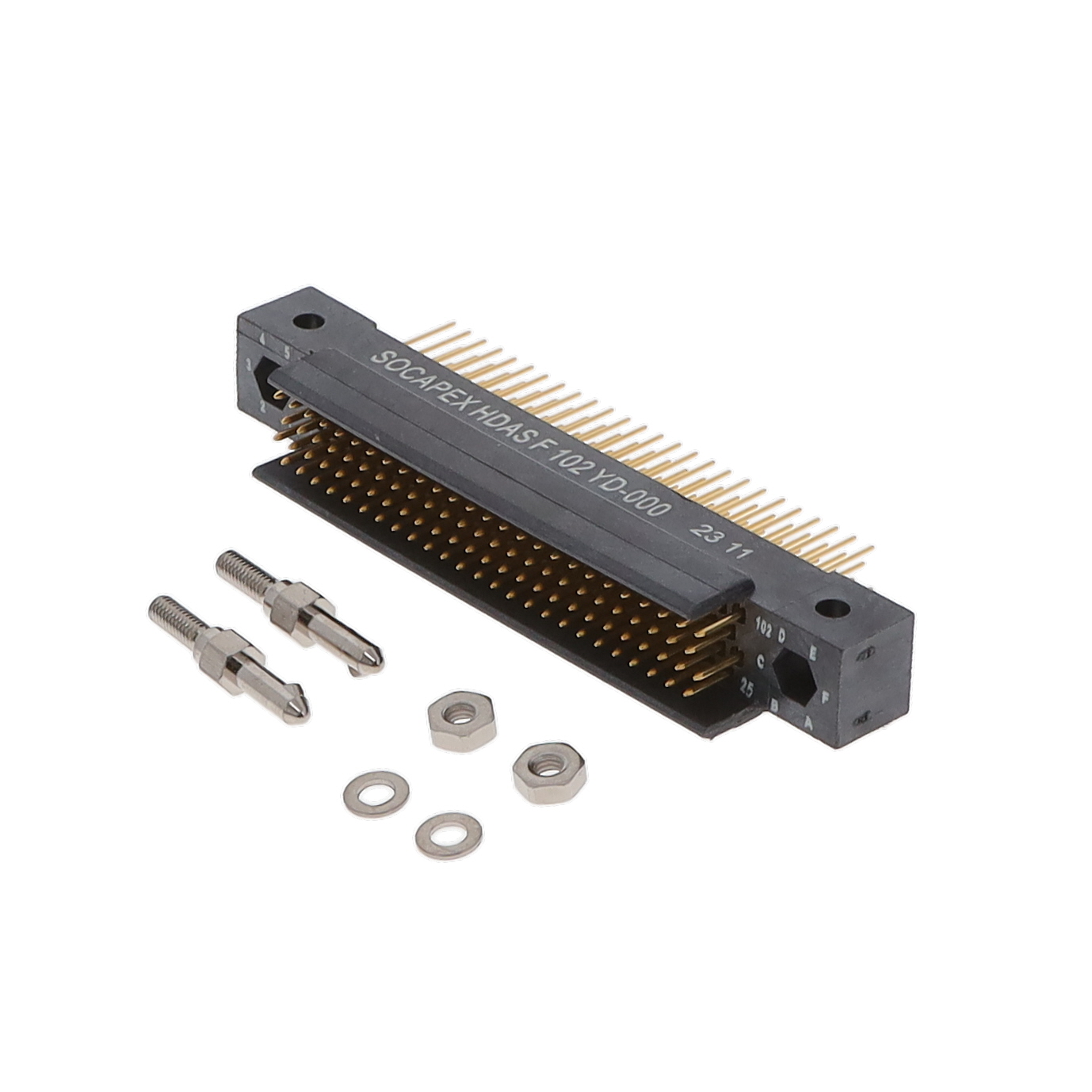

The HDASF102YD-000 is a rectangular MIL-Spec connector plug manufactured by Amphenol Aerospace Operations. It features a 4-row header configuration with 102 positions, designed for through-hole mounting. The connector utilizes a straight printed circuit (PC) tail design and operates at a voltage rating of 750 V. The contact pitch is specified as 0.075 inches (1.91 mm or 1.905 mm). This component belongs to the IUL Series and is constructed for robust interconnect applications in demanding environments.
Feature Summary
- Straight printed circuit tail design for secure board mounting
- 4-row header configuration supporting high-density connections
- MIL-Spec classification ensuring reliability in harsh environments
Applications
- Commercial aerospace systems
- Defense electronics platforms
- Industrial control interfaces
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with Amphenol Aerospace Operations before procurement. Confirm that the straight PC tail orientation matches the mechanical layout requirements of the target printed circuit board assembly. Ensure the 750 V voltage rating aligns with the system's electrical specifications to prevent insulation failure during operation.
Selection Notes
Select this model when a high-pin-count, 4-row rectangular connector is required for straight-through PCB integration. The 1.91 mm pitch accommodates standard spacing requirements for dense signal routing. Consider the MIL-Spec rating if the application demands resistance to vibration, temperature extremes, or other environmental stressors typical in aerospace or defense sectors.
Part Context
This part belongs to the HDAS series of rectangular connectors from Amphenol Aerospace Operations. The series includes various row counts and orientations, such as right-angle variants like the HDASF102YC-000. The HDAS designation indicates a specific form factor within the broader IUL product line, tailored for high-reliability interconnect needs across multiple industrial and aerospace markets.
Replacement Considerations
Cross-reference with HDASE102YD-000 for receptacle counterparts within the same series. Verify compatibility with mating plugs from the same manufacturer to ensure proper pin alignment and housing engagement. No direct substitute part numbers are confirmed in public documentation.
