Product Detailed Parameters
- Description：HDAS PLUG 119 RIGHT ANGLE PC TAI
- Series：HDAS
- Mfr：Amphenol Aerospace Operations
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.075" (1.91mm)
- Number of Positions：119
- Number of Rows：3
- Row Spacing - Mating：0.075" (1.91mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 2 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.157" (4.00mm)
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：4.5A per Contact
- Voltage Rating：750V
Download product information
Overview

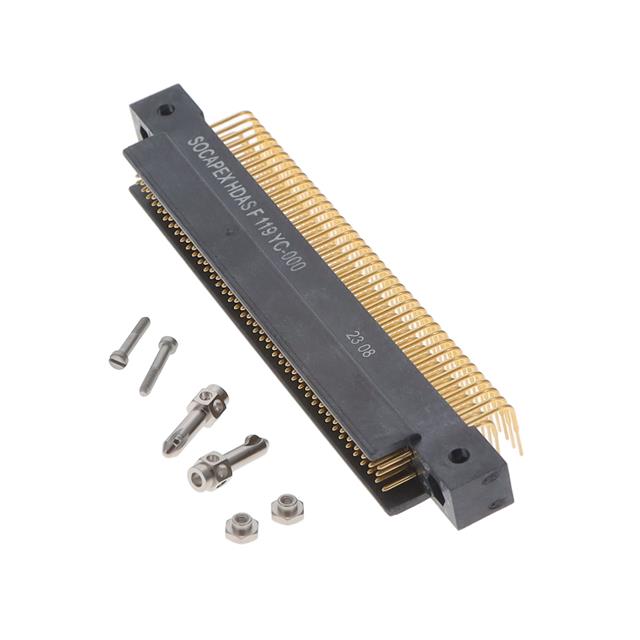

The HDASF119YC-000 is a high-density connector plug manufactured by Amphenol Aerospace Operations. It features a 119-position configuration designed for right-angle printed circuit board (PCB) termination. The component utilizes a through-hole mounting method with a pin spacing of 0.075 inches (1.91 mm). This specific model belongs to the HDAS series, providing a robust interconnect solution for applications requiring multiple signal or power lines in a compact form factor.
Feature Summary
- High-density 119-position configuration for complex signal routing
- Right-angle PCB mount design for space-constrained layouts
- Through-hole termination for secure mechanical attachment
Applications
- Industrial control systems requiring multi-channel connectivity
- Aerospace and defense electronic assemblies
- Heavy machinery instrumentation panels
Procurement Notes
Verify the exact datasheet version from Amphenol Aerospace Operations before procurement. Confirm that the right-angle orientation and 119-pin count match the target PCB footprint. Ensure the through-hole termination type aligns with the assembly process capabilities. Cross-reference the part number suffix to guarantee the correct housing and contact specifications are included.
Selection Notes
Select this component when a high channel count is required within a limited board area. The right-angle design facilitates efficient cable management and reduces profile height. Consider the 0.075-inch pitch for compatibility with standard industrial PCB traces. Evaluate the mechanical stability requirements against the through-hole mounting strength.
Part Context
This part belongs to the HDAS series of connectors from Amphenol Aerospace Operations. The series is engineered for demanding environments, offering reliable performance in aerospace and industrial sectors. The HDAS line typically provides rugged construction suitable for vibration and shock resistance, ensuring consistent electrical continuity in critical applications.
Replacement Considerations
Direct substitutes must maintain the 119-position count, right-angle orientation, and 0.075-inch pitch. Verify that any alternative part supports the same through-hole termination method. Check for identical housing dimensions and mating interface compatibility to ensure seamless integration without PCB redesign.
