HDASF119YD-000

$146.23

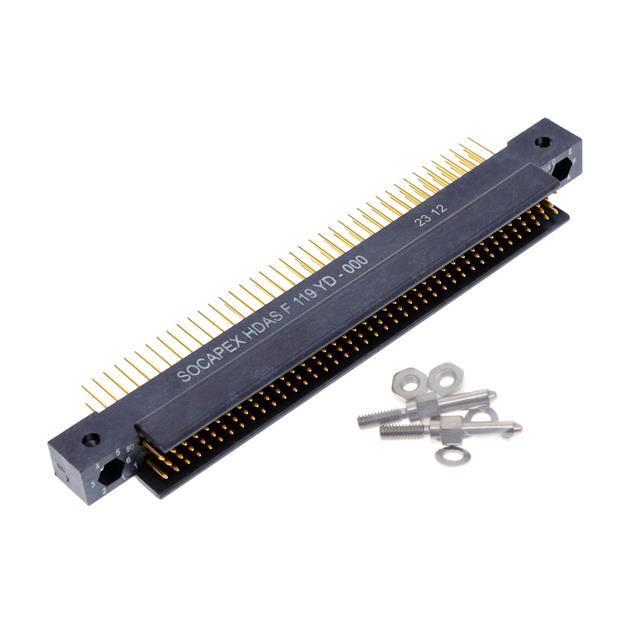

Description：HDAS PLUG 119 STRAIGHT PC TAIL C
Series：HDAS
Mfr：Amphenol Aerospace Operations
Package：Tray

SKU:6e1d33aa0d0a Category: Headers, Male Pins Brand: Amphenol Aerospace Operations

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：HDAS PLUG 119 STRAIGHT PC TAIL C
Series：HDAS
Mfr：Amphenol Aerospace Operations
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.075" (1.91mm)
Number of Positions：119
Number of Rows：3
Row Spacing - Mating：0.075" (1.91mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 2 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.264" (6.71mm)
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：39.4µin (1.00µm)
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
Features：Mating Flange, Mounting Flange
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：4.5A per Contact
Voltage Rating：750V
