HDASF152YC-000

$193.91

Description：HDAS PLUG 152 RIGHT ANGLE PC TAI
Series：HDAS
Mfr：Amphenol Aerospace Operations
Package：Tray

SKU:a55643c8cb3b Category: Headers, Male Pins Brand: Amphenol Aerospace Operations

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：HDAS PLUG 152 RIGHT ANGLE PC TAI
Series：HDAS
Mfr：Amphenol Aerospace Operations
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.075" (1.91mm)
Number of Positions：152
Number of Rows：3
Row Spacing - Mating：0.075" (1.91mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 2 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.157" (4.00mm)
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：39.4µin (1.00µm)
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
Features：Mating Flange, Mounting Flange
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：4.5A per Contact
Voltage Rating：750V

Download product information

HDASF152YC-000

Overview

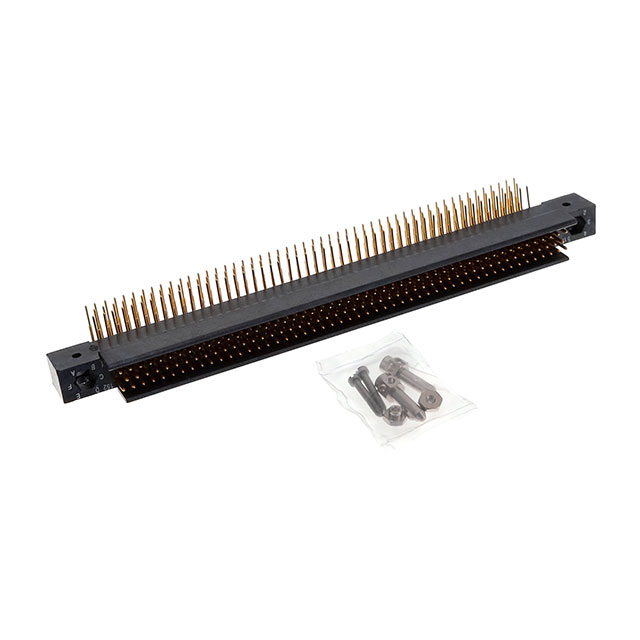

The HDASF152YC-000 is a board-level connector header manufactured by Amphenol Aerospace Operations. It features a through-hole mounting style with a right-angle configuration, designed for secure PCB integration. The component provides 152 positions to facilitate high-density signal or power routing in electronic assemblies. The contact pitch is specified at 0.075 inches (1.91 mm), ensuring standardized spacing for compatible mating connectors. This header is engineered for reliable performance in aerospace and defense applications requiring robust interconnect solutions.

Feature Summary

Right-angle through-hole design for efficient board space utilization
High-density 152-position configuration for complex circuit routing
Standardized 0.075-inch contact pitch for compatibility

Applications

Aerospace avionics systems
Defense electronics assemblies
Board-level interconnects in harsh environments

Procurement Notes

Verify the specific part number HDASF152YC-000 against official Amphenol documentation to confirm exact pinout, material specifications, and environmental ratings. Ensure that the right-angle through-hole format matches the target PCB layout requirements. Cross-reference the 152-position count and 1.91mm pitch with system design constraints before procurement to prevent integration errors.

Selection Notes

Select this component when a high-density, right-angle board header is required for aerospace or military-grade applications. The 152-position capacity supports extensive signal routing needs within constrained spaces. The through-hole mounting method offers mechanical stability superior to surface-mount alternatives in high-vibration environments typical of defense and aviation sectors.

Part Context

Amphenol Aerospace Operations specializes in high-performance interconnect systems for the military and aerospace markets. The HDAS series represents their board-level product line, focusing on reliability and durability. This specific model integrates into broader connectivity ecosystems used in critical infrastructure where signal integrity and physical robustness are paramount for operational success.
