HDASF152YD-000

Overview

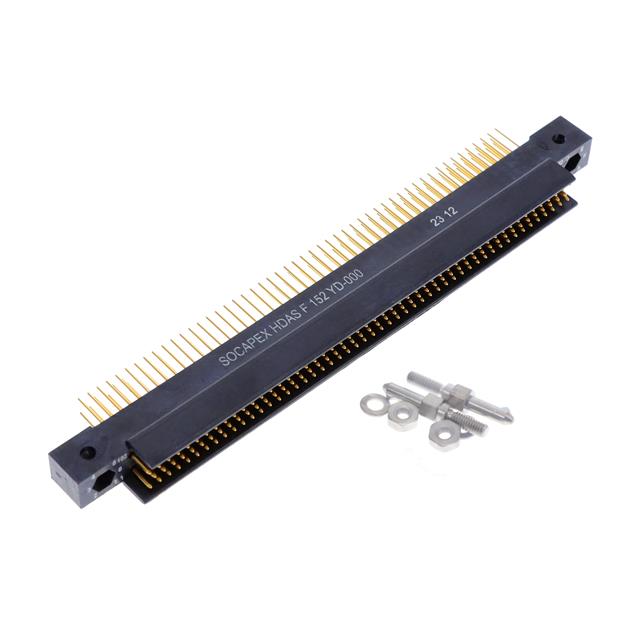

The HDASF152YD-000 is a rectangular MIL-DTL-55302G series connector manufactured by Amphenol Aerospace Operations. It features a 152-position plug configuration with three rows of contacts. The component utilizes a straight PCB mount style with solder termination and a standard tail length. Contact materials consist of copper alloy with gold plating, supporting a current rating of 4.5 A and a voltage rating of 750 V. The housing is constructed from liquid crystal polymer (LCP), providing an operating temperature range from -65°C to +150°C. The contact pitch is specified at 1.905 mm, ensuring precise alignment for high-density interconnect applications.

Feature Summary

• MIL-DTL-55302G compliant rectangular connector design
• Gold-plated copper alloy socket contacts for reliable signal transmission
• Liquid crystal polymer housing for thermal stability
• Straight printed circuit board mounting configuration

Applications

• Harsh environment defense systems
• Commercial aerospace avionics
• Industrial equipment requiring multipole connections
• Data communications infrastructure

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before integration. Confirm that the ordering suffix corresponds exactly to the required mechanical dimensions and contact type. Ensure compatibility with mating receptacles within the HDAS series. Check for any RoHS compliance declarations if required by project specifications. Validate that the supplier provides authentic components with traceable manufacturing records.

Selection Notes

Select this component when a high-density, military-specification interconnect is required for PCB mounting. Consider the 152-position count and three-row layout for space-constrained designs. Evaluate the 4.5 A current rating against system power requirements. Assess the LCP material properties against environmental exposure conditions. Compare alternative pin counts if fewer positions suffice for the application.

Part Context

This part belongs to the HDAS series of rectangular connectors designed for demanding environments. The series offers various position counts and mounting styles to support diverse interconnect needs. Amphenol Aerospace Operations produces these components to meet rigorous military standards. The HDAS family is widely used in sectors requiring reliable performance under vibration and temperature extremes.

Replacement Considerations

Cross-reference with equivalent MIL-DTL-55302G connectors from other manufacturers. Verify dimensional compatibility and pinout configurations before substitution. Ensure that alternative parts meet the same electrical and environmental ratings. Check for availability of mating counterparts in the replacement supply chain.
