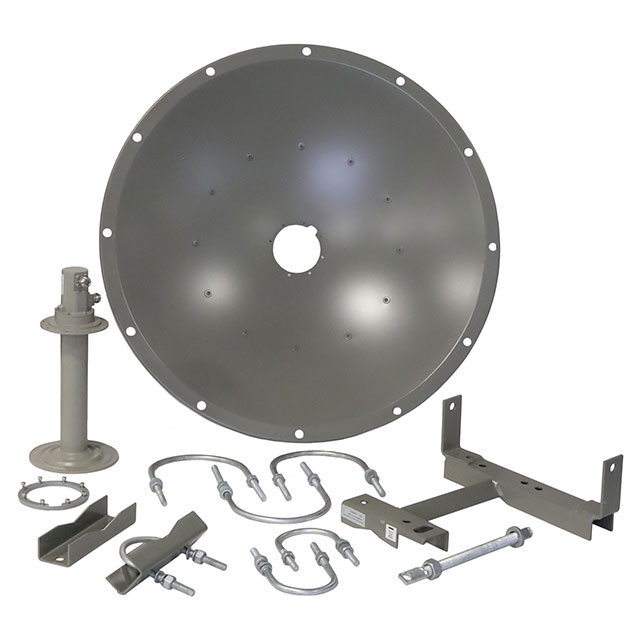

HDDA5W-29-DP2 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 5.4GHZ DISH N FEM BRKT MT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HDDA5W-29-DP2
- Description：RF ANT 5.4GHZ DISH N FEM BRKT MT
- Series：HD
- Mfr：TE Connectivity
- Package：Bulk
- RF Family/Standard：WiFi
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：5.4GHz
- Frequency Range：4.9GHz ~ 5.875GHz
- Antenna Type：Dish
- Number of Bands：1
- VSWR：1.8
- Return Loss：-
- Gain：29dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：25.512" (648.00mm)
- Applications：WiMax™, Wi-Fi
- Power - Max：100 W
Antennas RF datasheet and documents for HDDA5W-29-DP2
Antennas RF Overview
The TE Connectivity HDDA5W-29-DP2 is a high-performance parabolic dish antenna designed for the SHF frequency range. It operates within a frequency band of 4.9GHz to 5.875GHz, with a center frequency of 5.4GHz. The component provides a gain of 29dBi and supports dual polarization. It features an N-type female connector and is rated for a maximum power of 100 W. The VSWR is specified at 1.8. The antenna has a maximum height of 648.00mm and utilizes bracket mounting.
Antennas RF Feature Summary
- Dual polarization capability for enhanced signal reception
- High gain performance optimized for long-range communication
- Robust bracket mount design for stable installation
Antennas RF Applications
- WiMax networks
- Wi-Fi systems
- Point-to-point microwave links
Antennas RF Procurement Notes
Verify the specific ordering suffix DP2 to confirm dual polarity configuration against single polarity alternatives. Ensure the N-type female interface matches the receiving equipment. Confirm RoHS compliance status if required by project specifications. Check lead times as standard delivery periods may vary based on quantity and destination.
Antennas RF Selection Notes
Select this model when dual polarization is required for the 4.9GHz to 5.875GHz band. Compare against the HDDA5W-29-SP variant if single polarization suffices. Ensure the 29dBi gain aligns with link budget calculations. Verify that the bracket mounting style fits the physical installation constraints.
Antennas RF Part Context
This part belongs to the HD Series™ High Performance Dish Antenna line from TE Connectivity. The series includes variants with different gains and polarizations, such as the 32dBi models. The HDDA5W-29-DP2 specifically addresses needs for high-gain dual-polarized applications in the WiMax and Wi-Fi spectrum bands.
Antennas RF Replacement Considerations
The HDDA5W-29-SP is a documented substitute offering identical 29dBi gain but with single polarity. Both share the same HD Series platform and N-type connector interface.
