HDX8004NL

Overview

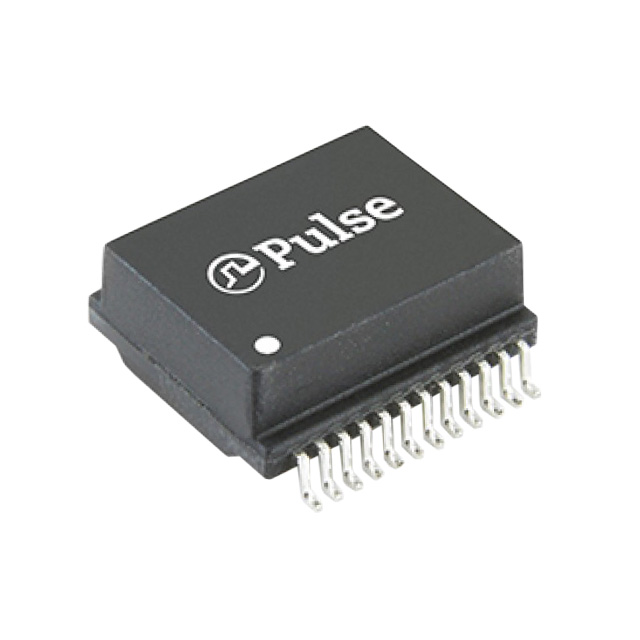

The HDX8004NL is a surface-mount HDBase-T pulse transformer manufactured by Pulse Electronics. It features a single-port configuration with a 1:1 turns ratio and an inductance of 120µH. The component supports Power over Ethernet (PoE) applications, delivering up to 60W of power. It provides an isolation voltage of 1500V and operates within a temperature range of -40°C to +85°C. The device is designed for high-speed data transmission standards associated with HDBase-T technology.

Feature Summary

• Supports HDBase-T signal transmission standards
• Integrated PoE functionality for power delivery
• Surface-mount package design for automated assembly

Applications

• HDBase-T transmitters and receivers
• AV-over-IP systems
• Digital signage networks
• Home automation hubs

Procurement Notes

Verify the specific datasheet version for the latest electrical tolerances and mechanical dimensions. Confirm that the operating temperature range meets the environmental requirements of the target application. Ensure compatibility with the PCB footprint and soldering profile specified by the manufacturer.

Selection Notes

Select this component when designing circuits requiring HDBase-T compliance with integrated power delivery. Consider the 120µH inductance value for impedance matching. Evaluate the 1500V isolation rating against system safety requirements. Check physical size constraints for the surface-mount form factor.

Part Context

This part belongs to the HDBase-T transformer series from Pulse Electronics. It is engineered specifically for the transmission of audio, video, Ethernet, and power over a single cable. The series includes variants optimized for different power levels and port configurations.

Replacement Considerations

Consult official substitution lists for direct equivalents. Verify pinout compatibility and electrical parameter alignment before replacing.
