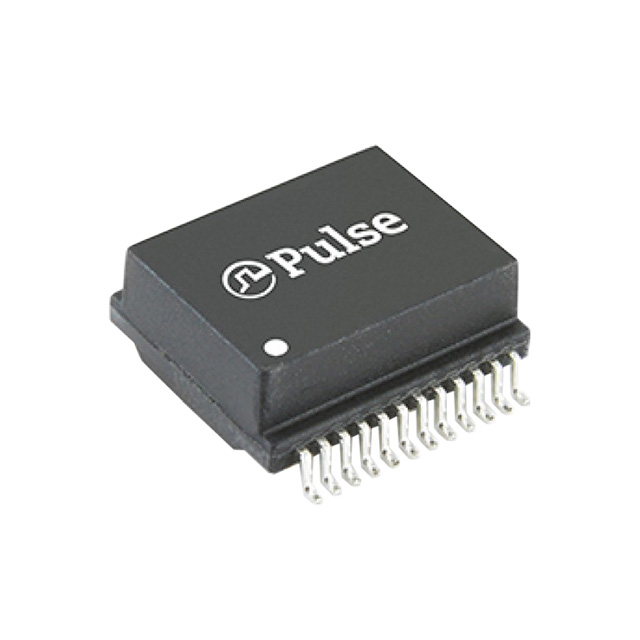

HDX8005NL

$8.55

Description：MDL,SIN, HDBASET, 100W, SMT
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:88740afe8151 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MDL,SIN, HDBASET, 100W, SMT
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：HDBase-T
Inductance：120µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：-
Height - Seated (Max)：0.225" (5.72mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

HDX8005NL

Overview

The HDX8005NL is a single-channel HDBase-T pulse transformer manufactured by Pulse Electronics, designed for surface-mount applications. It features an inductance of 120 µH and supports a maximum DC current of 900 mA with a power rating of 100 W. The component operates within a temperature range of -40°C to +85°C and provides 1500 Vrms isolation voltage. Its physical dimensions are 13.72 mm in length, optimized for compact PCB layouts in high-speed data transmission systems.

Feature Summary

Engineered specifically for HDBase-T signal integrity and isolation requirements
Provides robust electrical isolation with 1500 Vrms dielectric strength
Supports high-power delivery up to 100 W for integrated PoE applications

Applications

HDBase-T transceiver modules
High-definition multimedia interface circuits
PoE++ powered device implementations

Procurement Notes

Verify the specific suffix and package variant against the official datasheet to ensure compatibility with your design. Confirm RoHS compliance status and moisture sensitivity level prior to ordering. Cross-reference the manufacturer's latest documentation for any updates on lead times or recommended landing patterns.

Selection Notes

Select this component when designing for HDBase-T standards requiring 120 µH inductance and 100 W power handling. Ensure the operating temperature range of -40°C to +85°C meets environmental constraints. Verify that the surface-mount footprint matches the specified 13.72 mm length constraint.

Part Context

This part belongs to Pulse Electronics' portfolio of LAN and signal transformers. It is distinct from the HD8005FNL, which specifies 100 µH inductance and a 0°C to +70°C operating range. The HDX8005NL offers extended temperature performance and higher current capacity compared to standard variants.

Replacement Considerations

Direct substitutes include HD8005FNLT, though it differs in inductance (100 µH) and temperature range. Verify functional equivalence regarding HDBase-T signaling rates and power delivery capabilities before substitution.
