HDX8006NL

Overview

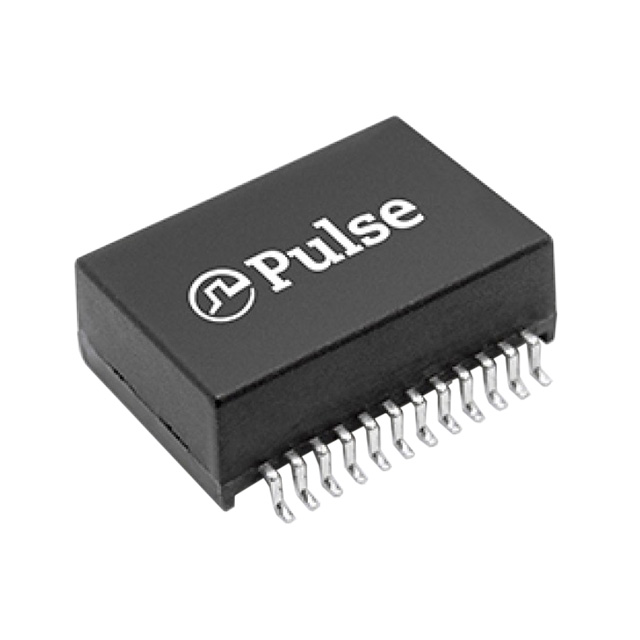

The HDX8006NL is a single-port surface mount audio and signal transformer module designed for HDBase-T applications. It supports 4-Pair Power over Ethernet Plus (4PoEPP) with a power rating of 140W, compatible with Valens PHYs including VS010, VS020, VS100, VS200, VS210, VS2000, and VS2310. The component operates within an industrial temperature range of -40°C to +85°C. Key electrical specifications include an inductance of 120µH and an isolation voltage of 1.5kV. The device features a compact SMT footprint suitable for space-constrained designs.

Feature Summary

• Supports 140W 4-Pair Power over Ethernet Plus (4PoEPP) for high-power delivery
• Optimized for HDBase-T transmission protocols
• Industrial-grade thermal stability from -40°C to +85°C
• Surface mount construction for automated assembly

Applications

• Blu-ray and DVD recorders
• Digital displays and projectors
• Digital set-top boxes
• AV receivers and game consoles
• HDMI repeaters, splitters, and switches

Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm package type and tape/reel specifications. Confirm that the required Valens PHY compatibility aligns with system design requirements. Check for recent Product Change Notifications regarding manufacturing updates or material substitutions before finalizing procurement orders.

Selection Notes

Select this component when designing systems requiring high-power PoE delivery alongside HDBase-T signal integrity. Ensure the application environment falls within the specified industrial temperature range. Verify that the single-port configuration meets the network topology requirements and that the surface mount form factor fits the PCB layout constraints.

Part Context

This part belongs to Pulse Electronics' HDX series of HDBase-T transformers. The series includes variants such as HDX8004NL and HDX8005NL, differentiated primarily by power handling capabilities and specific PHY support. These modules are engineered to replace discrete magnetic components, simplifying board design while maintaining signal quality for high-definition multimedia transmission standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should consult official cross-reference lists or contact the manufacturer directly for validated alternatives.
