HDX8008NL

Overview

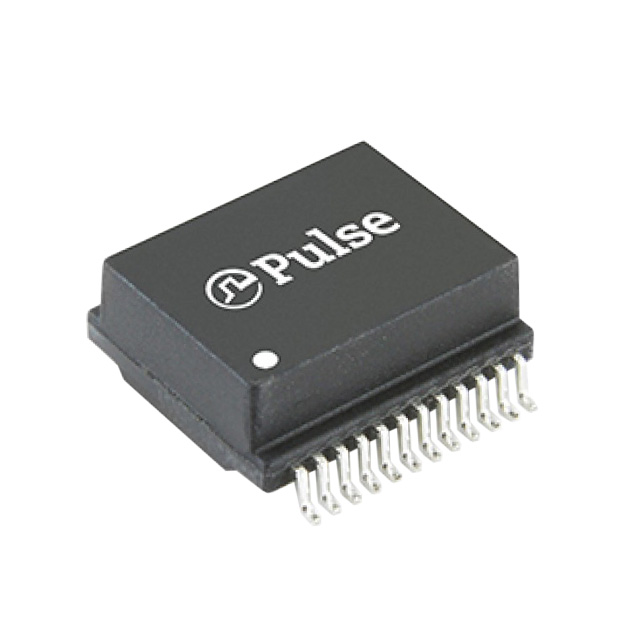

The HDX8008NL is a surface-mount signal transformer module from Pulse Electronics, designed for HDBaseT applications. It supports 4PoEPP (Power over Ethernet) with a power rating of 60W and features an inductance of 120µH. The component operates at a single port with a 1:1 turns ratio and provides isolation voltage capabilities suitable for high-voltage environments.

Feature Summary

• Designed specifically to support HDBaseT chipsets
• Supports 4PoEPP (Power over Ethernet) applications up to 60W
• Surface mount construction for automated assembly

Applications

• HDBaseT chipset integration
• 4PoEPP power delivery systems
• Single-port signal transmission modules

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Pulse Electronics or authorized distributors before procurement. Confirm that the 60W power rating and 120µH inductance align with your system requirements. Ensure the surface-mount footprint matches your PCB design constraints. Check for any recent product change notices that might affect mechanical dimensions or electrical characteristics.

Selection Notes

Select this component when designing HDBaseT-based systems requiring integrated PoE++ support up to 60W. It is suitable for single-port applications where space efficiency is critical due to its surface-mount package. Consider the 120µH inductance value for impedance matching and signal integrity requirements in high-frequency data transmission scenarios.

Part Context

This part belongs to the HDX series of audio and signal transformers manufactured by Pulse Electronics. These components are specialized LAN transformers intended for high-speed data interfaces. The HDX8008NL specifically targets the HDBaseT market, differentiating itself through its ability to handle significant power levels alongside data signals in a compact form factor.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Pulse Electronics technical support for potential alternatives if this specific model is discontinued or unavailable.
