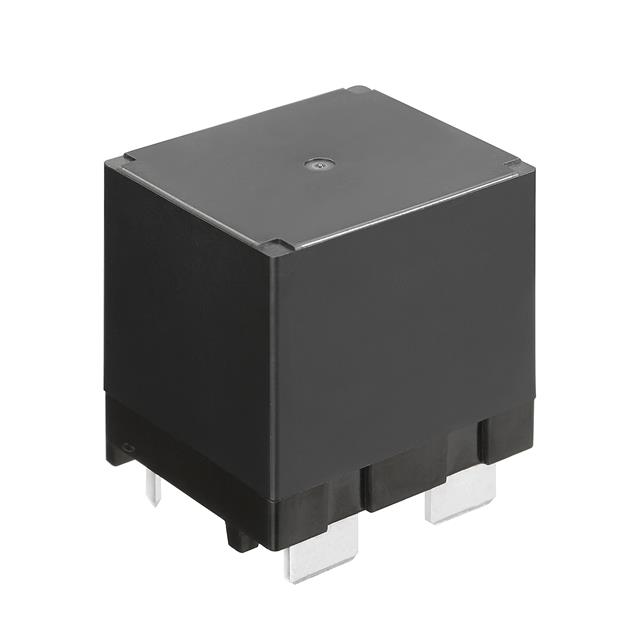

Power Relays, Over 2 Amps HE1AN-W-DC12V-Y6H product image

HE1AN-W-DC12V-Y6H

$30.38

Description：HE-PV RELAY, 1FORMA, 12VDC COIL
Series：HE-PV
Mfr：Panasonic Electric Works
Package：Tray

SKU:038a6152f35b Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HE1AN-W-DC12V-Y6H is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is HE-PV RELAY, 1FORMA, 12VDC COIL. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for HE1AN-W-DC12V-Y6H

Description：HE-PV RELAY, 1FORMA, 12VDC COIL
Series：HE-PV
Mfr：Panasonic Electric Works
Package：Tray
Mounting Type：Through Hole
Coil Voltage：12VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：90 A
Switching Voltage：800VAC, 60VDC - Max
Load - Max Switching：72000VA, 5400W
Coil Current：160 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Flux Protection
Coil Insulation：-
Must Operate Voltage：9 VDC
Must Release Voltage：1.2 VDC
Operating Temperature：-50°C ~ 85°C
Contact Material：Silver Nickel (AgNi)
Approval Agency：CSA, cURus, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：30 ms
Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for HE1AN-W-DC12V-Y6H

HE1AN-W-DC12V-Y6H
