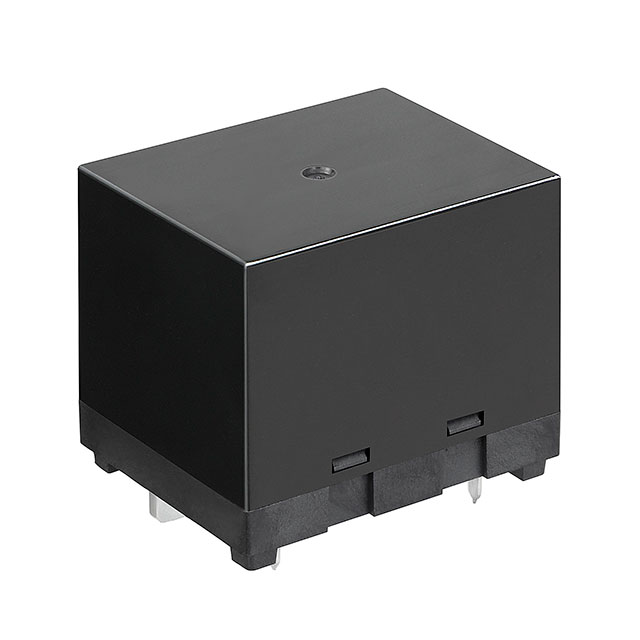

Power Relays, Over 2 Amps HE1AN-W-DC24V-Y7 product image

HE1AN-W-DC24V-Y7

$34.66

Description：RELAY GEN PURPOSE SPST 120A 24V
Series：HE-N
Mfr：Panasonic Electric Works
Package：Tray

SKU:dcaea83fd157 Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HE1AN-W-DC24V-Y7 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE SPST 120A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for HE1AN-W-DC24V-Y7

Description：RELAY GEN PURPOSE SPST 120A 24V
Series：HE-N
Mfr：Panasonic Electric Works
Package：Tray
Mounting Type：Through Hole
Coil Voltage：24VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：120 A
Switching Voltage：800VAC, 60VDC - Max
Load - Max Switching：96000VA, 7200W
Coil Current：104 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Flux Protection
Coil Insulation：Class F
Must Operate Voltage：18 VDC
Must Release Voltage：1.2 VDC
Operating Temperature：-40°C ~ 55°C
Contact Material：Silver Nickel (AgNi)
Approval Agency：cURus, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：30 ms
Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for HE1AN-W-DC24V-Y7
