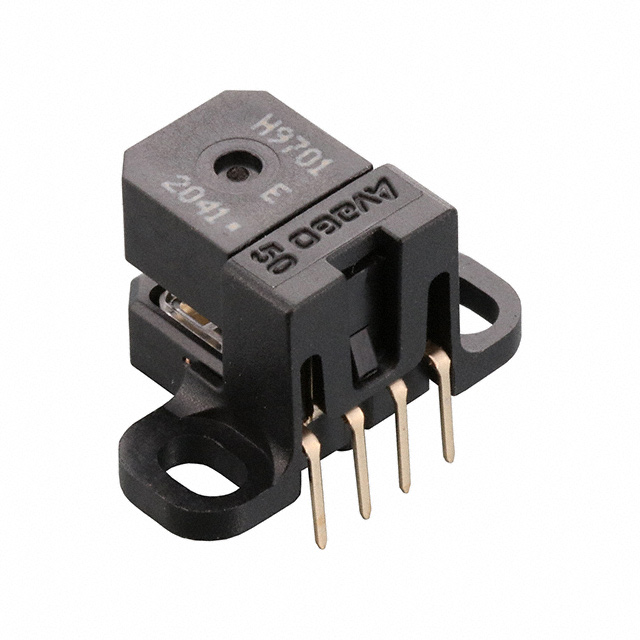

Encoders HEDS-9701-E50 product image

HEDS-9701-E50

$10.18
  • Description：SMALL EN,2CH,200CPR,BT LDS,STD
  • Series：HEDS
  • Mfr：Broadcom Limited
  • Package：Tray

SKU:a0bf909856ef Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

HEDS-9701-E50 is listed in the Encoders range at ChipApex. The manufacturer field lists Broadcom Limited. Its product description is SMALL EN,2CH,200CPR,BT LDS,STD. Review the specifications below when checking this part for your BOM.

Encoders specifications for HEDS-9701-E50

  • Description：SMALL EN,2CH,200CPR,BT LDS,STD
  • Series：HEDS
  • Mfr：Broadcom Limited
  • Package：Tray
  • Encoder Type：Optical
  • Output Type：Quadrature (Incremental)
  • Pulses per Revolution：200
  • Voltage - Supply：4.5V ~ 5.5V
  • Actuator Type：Codewheel Not Included
  • Detent：No
  • Built in Switch：No
  • Mounting Type：Chassis Mount, Motors
  • Orientation：Right Angle
  • Termination Style：Terminal Pins
  • Rotational Life (Cycles Min)：-
  • Grade：-
  • Qualification：-

Encoders datasheet and documents for HEDS-9701-E50
