HF0416413

Overview

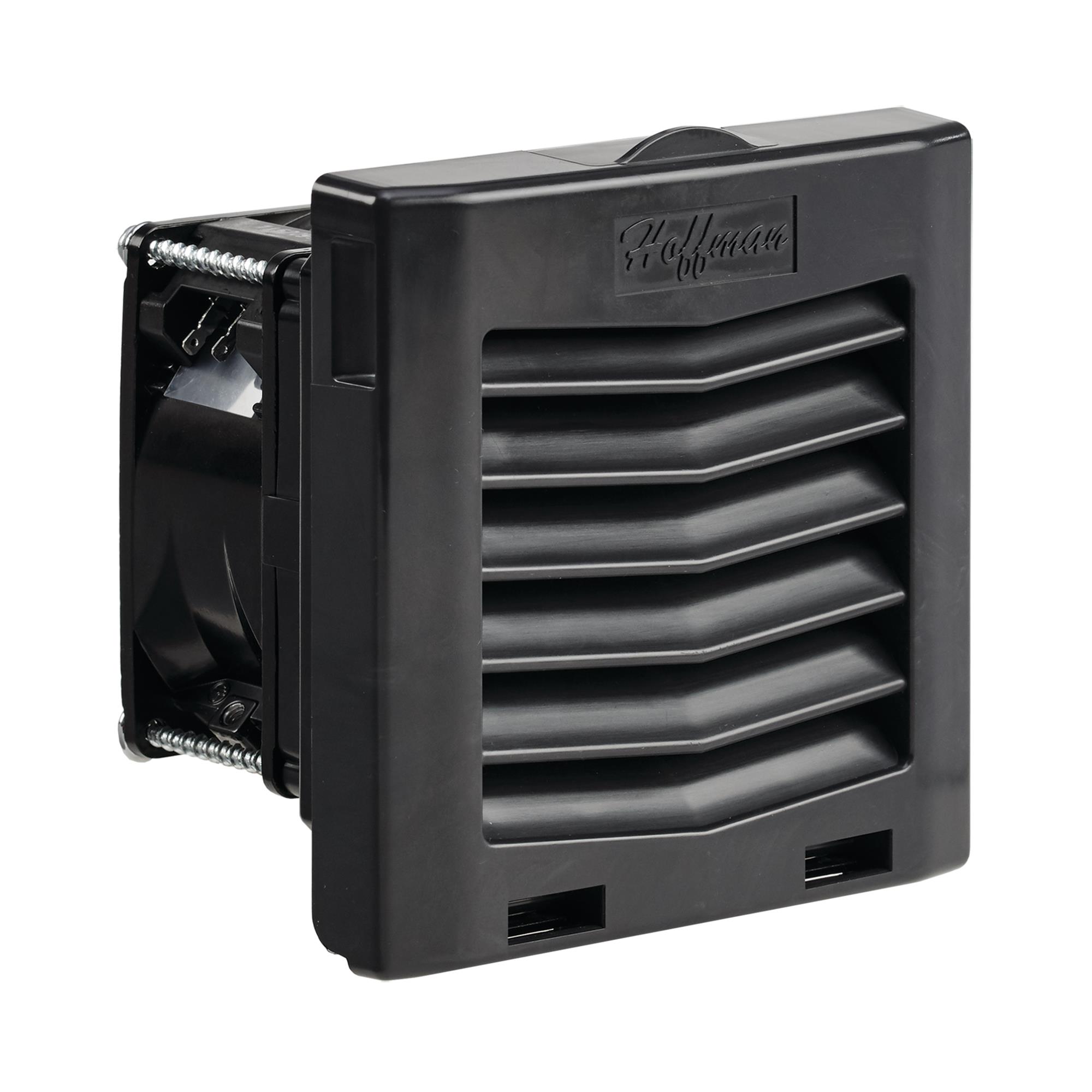

The HF0416413 is a side-mount filter fan manufactured by Hoffman Enclosures, Inc. It provides an airflow capacity of 21 CFM (36 m³/hr). The unit operates on a maximum AC voltage rating of 115 Volts at a frequency of 50/60 Hertz. Physical dimensions include a body length of 4.44 inches and a body width of 4.42 inches. The device features a black ABS construction and carries UL and CUL certifications.

Feature Summary

• Click-fit design enables quick installation into enclosure walls without tools or screws
• Simple snap-open grille allows for easy filter replacement with a flick of the finger

Applications

• Enclosure side wall cooling
• Industrial control panel ventilation
• Electrical cabinet thermal management

Procurement Notes

Verify that the specific order matches the manufacturer part number HF0416413 from Hoffman Enclosures, Inc. Confirm the voltage requirement aligns with the 115V AC specification. Ensure the physical mounting space accommodates the 4.44-inch length and 4.42-inch width dimensions. Check for required safety certifications such as UL or CUL depending on regional compliance standards.

Selection Notes

Select this model when tool-free installation is required for enclosure maintenance. Choose based on the 21 CFM airflow requirement for the specific heat load. Verify compatibility with the 115V power supply available in the target environment. Consider the side-mount orientation and black ABS finish for aesthetic or material consistency with existing equipment.

Part Context

This component belongs to the HF Side-Mount Filter Fan series designed for nVent Hoffman enclosures. It serves as a passive-to-active cooling solution for electrical cabinets. The product line emphasizes rapid deployment and simplified maintenance through its click-fit mechanism and accessible filter design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
