HF0924413

Overview

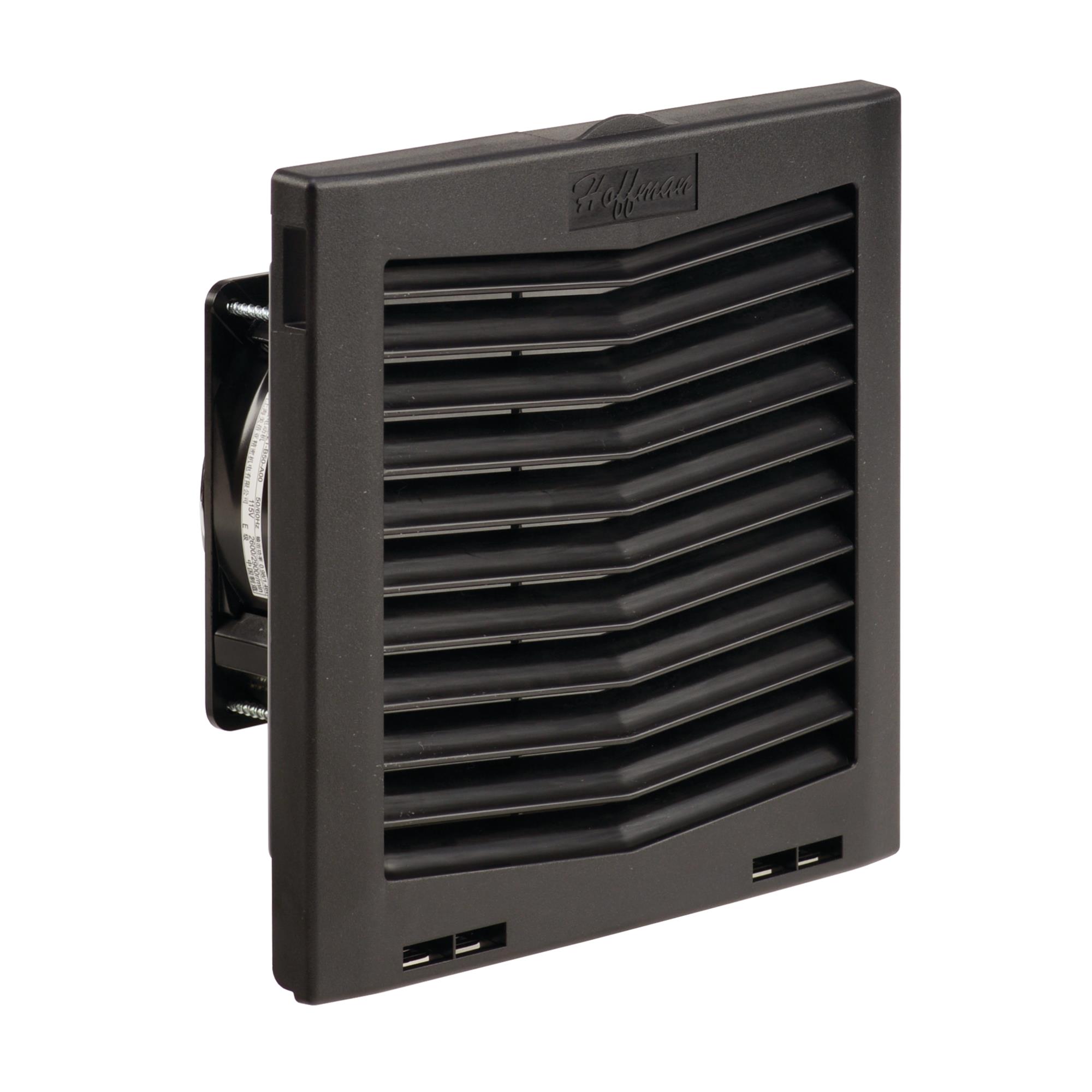

The Hoffman HF0924413 is a side-mount enclosure cooling filter fan designed for 24 VDC operation. It delivers an airflow of 70 CFM (119 m³/hr) with a current rating of 0.35 A and power consumption of 8.4 W. The unit features a 9-inch square footprint, measuring approximately 8.21 inches in body length and 8.19 inches in width, with a depth of 4.15 inches. Constructed from black plastic (RAL 9011), it operates at 3200 RPM. The device holds UL, CUL, and CE approvals and utilizes terminal block connections for electrical interface.

Feature Summary

• Click-fit design enables tool-less installation directly into the enclosure wall without screws
• Easy-Grip tab allows grilles to open with a flick of the finger for rapid filter replacement
• Provides fresh air cooling through a side-mount configuration

Applications

• Enclosure side-mount cooling
• Industrial control panel ventilation
• Electronic equipment thermal management

Procurement Notes

Verify that the specific part number matches the required voltage and airflow specifications. Confirm that the click-fit mounting style is compatible with the target enclosure wall thickness. Ensure terminal block wiring methods align with existing system requirements before procurement.

Selection Notes

Select this model when tool-less maintenance and quick installation are prioritized over traditional screw-mounted units. The 24 VDC rating requires compatible power supplies. Consider the 70 CFM airflow capacity relative to the heat load generated within the specific enclosure environment.

Part Context

This component belongs to the nVent HOFFMAN HF09 series of side-mount filter fans. These units are engineered for standard industrial enclosures requiring efficient heat dissipation. The series emphasizes ease of serviceability and secure mounting within controlled environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting cutouts and electrical interfaces if considering alternative models.

FAQ

How is the filter replaced on this unit?

The grilles open with a flick of the finger using the Easy-Grip tab, allowing for easy filter replacement without tools.

What type of electrical connection does this fan use?

The HF0924413 uses terminal block connections for its electrical interface.
