HF0948514

Overview

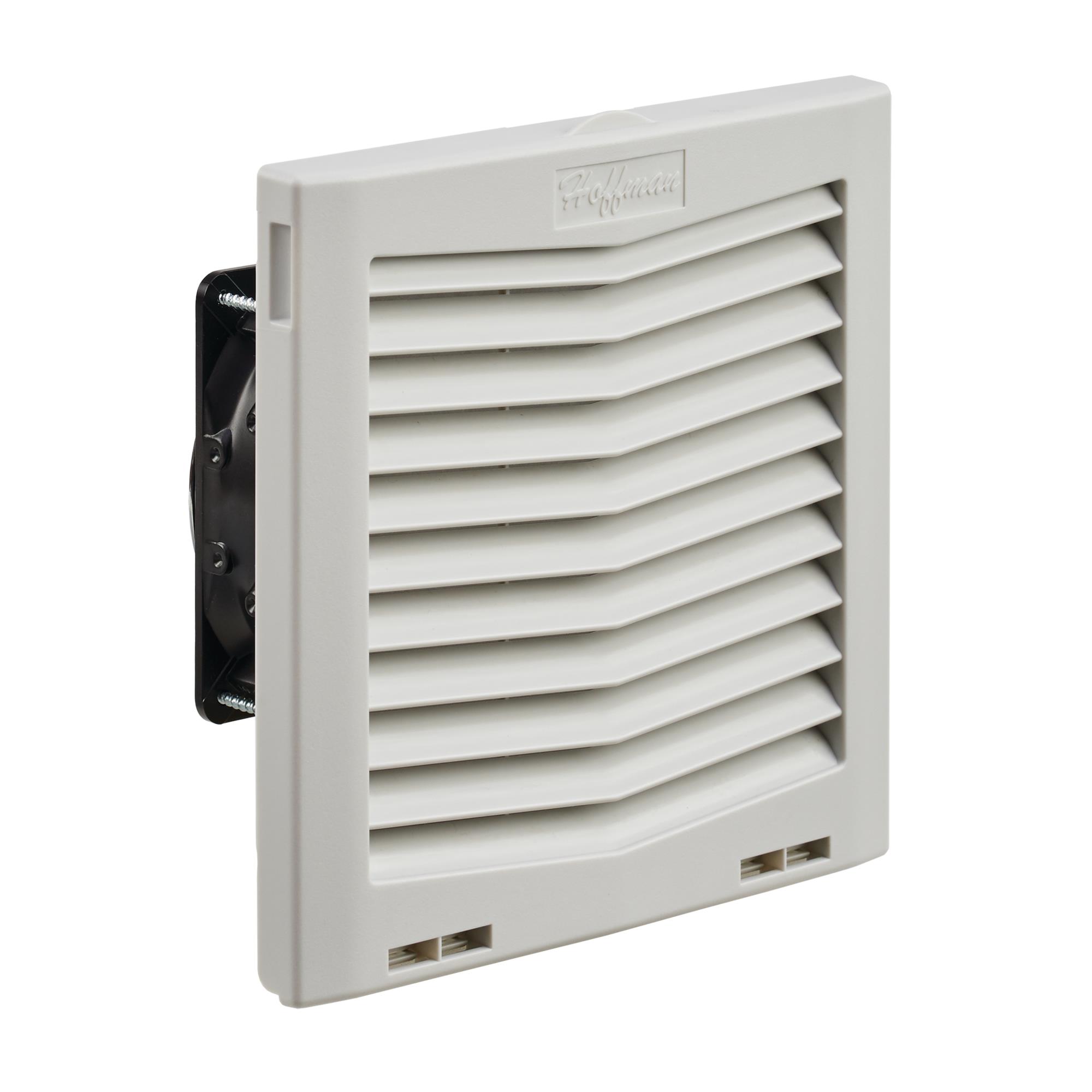

The HF0948514 is a side-mount filter fan manufactured by Hoffman Enclosures, Inc. It operates on 48 VDC with a current draw of 0.17 A and consumes 8.2 W of power. The unit features a 9-inch diameter design and carries an IP55 ingress protection rating. It utilizes a Click-Fit installation method that requires no tools or screws for enclosure wall mounting.

Feature Summary

• Click-Fit design enables quick tool-free installation into enclosure walls
• Grille opens with a finger flick to facilitate easy filter replacement
• Side-mount configuration provides efficient thermal management

Applications

• Enclosure thermal management
• Industrial control panel cooling
• Equipment housing ventilation

Procurement Notes

Verify the specific voltage requirement of 48 VDC against system specifications. Confirm the physical dimensions match the available cutout space in the target enclosure. Ensure the IP55 rating meets environmental protection needs. Check compatibility with existing mounting structures as this model uses a specialized Click-Fit mechanism rather than traditional screw mounting.

Selection Notes

Select this model when tool-free maintenance access is required for filter cleaning. Consider the 48 VDC power supply availability within the system architecture. Evaluate the 8.2 W power consumption against thermal load calculations. Verify that the side-mount orientation aligns with airflow requirements and spatial constraints within the equipment housing.

Part Context

This component belongs to the Hoffman MCLF Filter Fan series designed for side-mount applications. It serves as a thermal management solution for electronic enclosures requiring dust and water resistance. The product line emphasizes ease of maintenance through its unique grille opening mechanism and secure mounting design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
