HF0AA1330A700

Overview

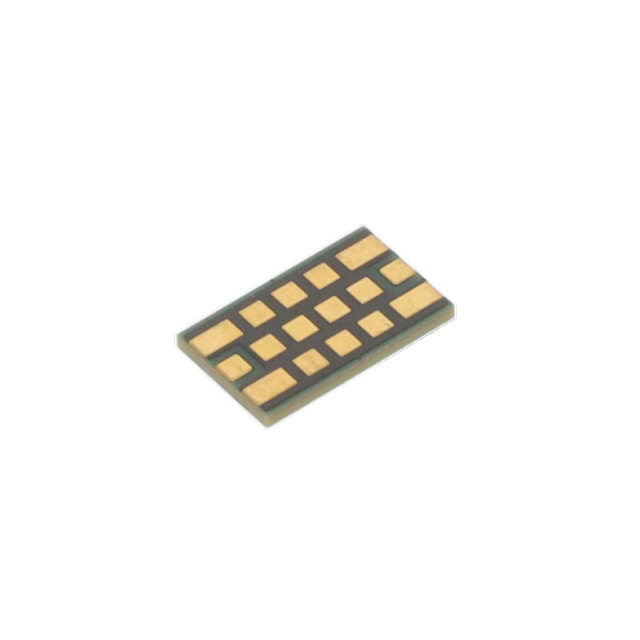

The HF0AA1330A700 is a high-pass filter from the KYOCERA AVX HF series, designed for signal conditioning applications. It operates at a center frequency of 1.33 GHz with a bandwidth of 5.26 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a compact 2616 (6640 metric) package. The device supports an operating temperature range from -55°C to +85°C and exhibits an insertion loss of 0.75 dB.

Feature Summary

• Provides high-pass filtering characteristics for RF signal conditioning
• Utilizes surface-mount technology for direct board integration
• Maintains stable performance across a wide industrial temperature range

Applications

• RF signal path filtering in communication systems
• High-frequency circuit protection and conditioning
• Wireless infrastructure components

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 2616 package dimensions align with your PCB footprint requirements. Ensure the operating temperature range meets your environmental specifications. Cross-reference the part number to avoid confusion with similar HF series variants.

Selection Notes

Select this component when a high-pass filter with a 1.33 GHz cutoff is required in a compact form factor. The 50 Ohm impedance matches standard RF transmission lines. Consider the 2616 package size for space-constrained designs. Verify that the insertion loss specification is acceptable for your system budget. Ensure compatibility with SMD assembly processes.

Part Context

This part belongs to the KYOCERA AVX HF series of high-pass filters. These components are engineered for reliable signal conditioning in demanding RF environments. The series offers various frequency options and package sizes to suit different design needs. The HF0AA1330A700 specifically targets applications requiring precise high-frequency filtering within a small footprint.

Replacement Considerations

Consult official KYOCERA AVX documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' high-pass filters without rigorous electrical testing. Verify that any replacement maintains the same impedance, package dimensions, and thermal ratings.
