HF0AA1760A700

Overview

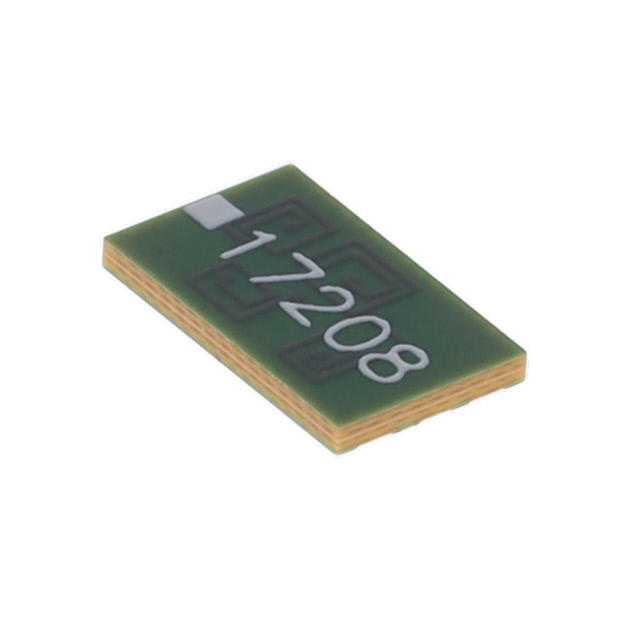

The HF0AA1760A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 1.76 GHz with a bandwidth of 1.75 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a 2616 (6640 metric) package and belongs to the HF series. The device supports an operating temperature range from -55 C to +85 C.

Feature Summary

• Provides high-pass filtering for radio frequency signal conditioning
• Designed for surface-mount board integration
• Operates within a wide industrial temperature range

Applications

• RF signal path filtering
• Wireless communication systems
• Signal conditioning circuits

Procurement Notes

Verify current availability and lead times directly with authorized distributors or the manufacturer, as supply status may vary. Confirm that the specified package dimensions and termination style match your PCB design requirements. Ensure environmental compliance documentation is reviewed prior to final procurement decisions.

Selection Notes

Select this component when a high-pass filter with a 1.76 GHz cutoff is required in a compact 2616 footprint. Consider the 50 Ohm impedance matching for system compatibility. Evaluate the thermal performance against the -55 C to +85 C operating range to ensure suitability for the intended environment.

Part Context

This part belongs to the HF series of high-pass filters from KYOCERA AVX. These components are engineered for precise signal conditioning in RF applications. The series offers various frequency options within standardized surface-mount packages to facilitate design flexibility and integration into modern electronic devices.

FAQ

What is the impedance of the HF0AA1760A700?

The impedance is 50 Ohms.

What package size does this filter use?

It uses a 2616 (6640 metric) package.
