Product Detailed Parameters
- Description：RF FILT HIGH PASS 2.23GHZ 16ULGA
- Series：HF
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：2.23GHz
- Bandwidth：-
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：1.2dB
- Mounting Type：Surface Mount
- Package / Case：16-ULGA
- Size / Dimension：0.259" L x 0.156" W (6.58mm x 3.98mm)
- Height (Max)：0.022" (0.56mm)
Download product information
Overview

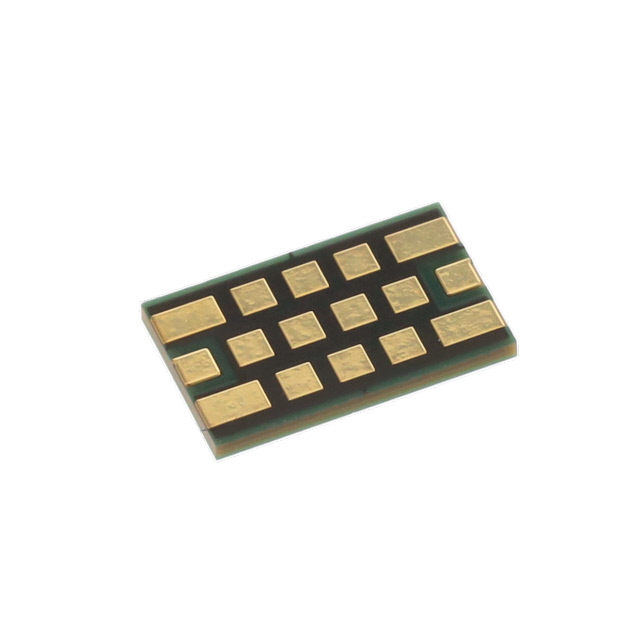

The KYOCERA AVX HF0AA2230A700 is a high-pass filter designed for signal conditioning applications. It operates at a center frequency of 2.23 GHz with a bandwidth of 4.27 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types. It is housed in a 2616 (6440 metric) package, suitable for board mount installation. The device functions within a temperature range of -55 C to +85 C and belongs to the HF series.
Feature Summary
- High-frequency performance based on thin-film multilayer technology
- Designed for precise signal conditioning in RF circuits
- Compact surface-mount form factor for space-constrained designs
Applications
- RF signal processing systems
- Wireless communication infrastructure
- Test and measurement equipment
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the 2616 package dimensions align with your PCB footprint requirements. Ensure environmental ratings meet operational needs as factory special orders may have specific handling protocols.
Selection Notes
Select this component when a high-pass filter with a 2.23 GHz cutoff is required. The 50 Ohm impedance matches standard RF transmission lines. Consider the 2616 package size for assembly constraints. Verify thermal stability requirements against the specified operating temperature range for reliable performance in target environments.
Part Context
This part belongs to the KYOCERA AVX HF series of high-pass filters. These components utilize thin-film technology to achieve superior high-frequency characteristics. The series is engineered for demanding RF applications requiring stable signal filtering and minimal insertion loss in compact packages.
Replacement Considerations
Check for direct substitutes within the HF series with compatible frequencies and package sizes. Verify electrical parameters such as impedance and bandwidth match system requirements before substituting.
