HF0AA2370A700

Overview

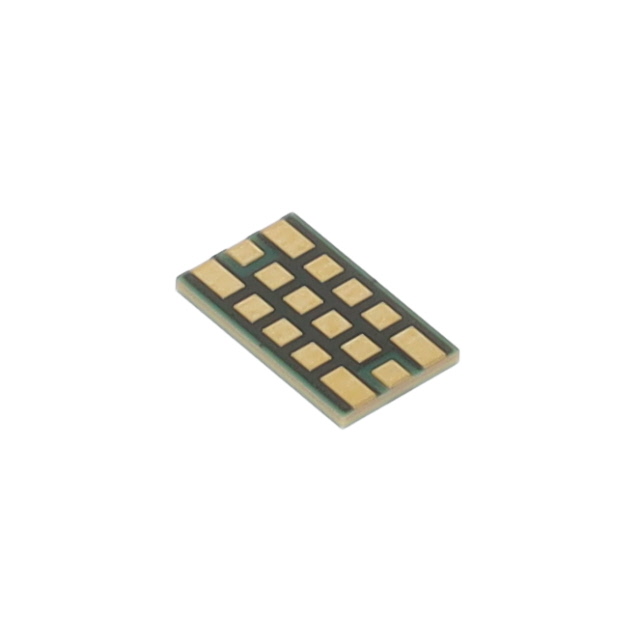

The HF0AA2370A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a cutoff frequency of 2.37 GHz with a bandwidth of 4.63 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination styles for board mounting. It is housed in a compact 2616 (6640 metric) package. The device supports an operating temperature range from -55°C to +85°C and exhibits an insertion loss of 0.76 dB. This part belongs to the HF series of high-pass filters.

Feature Summary

• High-pass filtering capability centered around 2.37 GHz
• Compact surface-mount design in a 2616 package
• Operates within a wide industrial temperature range

Applications

• RF signal conditioning circuits
• Wireless communication systems requiring high-frequency filtering
• Board-mounted RF front-end modules

Procurement Notes

Verify current availability and lead times directly with authorized distributors or the manufacturer, as this item may be subject to factory special order requirements. Confirm RoHS compliance status through official documentation before integration. Ensure ordering quantities align with specific manufacturer packaging constraints and minimum order requirements to avoid fulfillment delays.

Selection Notes

Select this component when a high-pass filter with a 2.37 GHz cutoff is required in a 2616 footprint. Consider the 50 Ohm impedance match for system compatibility. Evaluate the -55°C to +85°C operating range against environmental conditions. Compare insertion loss specifications with alternative parts if low-loss performance is critical for the specific application path.

Part Context

This component is part of the KYOCERA AVX HF series, which offers RF filters ranging from 500 MHz to 6000 MHz. These filters utilize thin-film technology to provide robust performance in demanding RF environments. The series is designed for various signal conditioning needs across multiple wireless standards.

FAQ

What is the package size of the HF0AA2370A700?

The component is housed in a 2616 (6640 metric) surface-mount package.

Does the HF0AA2370A700 support operation at low temperatures?

Yes, the device is rated for a minimum operating temperature of -55°C.
