Product Detailed Parameters

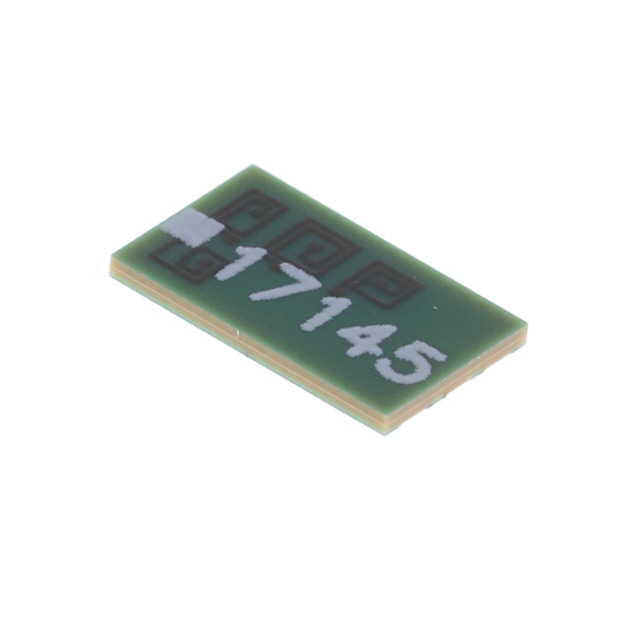

- Description：RF FILTER HI PASS 2.4GHZ 16ULGA
- Series：HF
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：2.4GHz
- Bandwidth：-
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：1.2dB
- Mounting Type：Surface Mount
- Package / Case：16-ULGA
- Size / Dimension：0.259" L x 0.156" W (6.58mm x 3.98mm)
- Height (Max)：0.022" (0.56mm)
Download product information
Overview
The KYOCERA AVX HF0AA2400A700 is a high-pass filter designed for signal conditioning applications. It operates within a frequency range of 2.4 GHz to 7 GHz, providing a bandwidth of 4.6 GHz. The component features a 50 Ohms impedance and utilizes SMD/SMT termination types. It is housed in a compact 2616 (6640 metric) package, suitable for board mount installation. The device supports an operating temperature range from -55 C to +85 C and belongs to the HF series.
Feature Summary
- High-pass filtering capability for RF signal conditioning
- Compact surface-mount design for space-constrained PCBs
- Wide operational bandwidth covering 2.4 GHz to 7 GHz
Applications
- RF signal processing circuits
- Wireless communication systems
- Signal conditioning modules
Procurement Notes
Verify the specific datasheet version and RoHS compliance details directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 2616 package footprint matches your PCB layout requirements. Ensure the operating temperature range of -55 C to +85 C aligns with your system's environmental conditions. Check for any recent product change notifications regarding manufacturing updates.
Selection Notes
Select this component when a high-pass filter with a cutoff starting at 2.4 GHz is required. The 50 Ohms impedance ensures compatibility with standard RF transmission lines. The 2616 package size offers a balance between performance and board space efficiency. Consider the thermal limits if the application involves high ambient temperatures or self-heating.
Part Context
This part belongs to the KYOCERA AVX HF series of high-pass filters. These components are engineered for high-frequency signal integrity. The series typically employs advanced thin-film or multi-layer technologies to achieve precise filtering characteristics in small form factors, catering to modern electronic device miniaturization trends.
FAQ
What is the impedance of the HF0AA2400A700?
The impedance is 50 Ohms.
What is the operating frequency range?
The frequency range is 2.4 GHz to 7 GHz.
