HF0AA2410A700

Overview

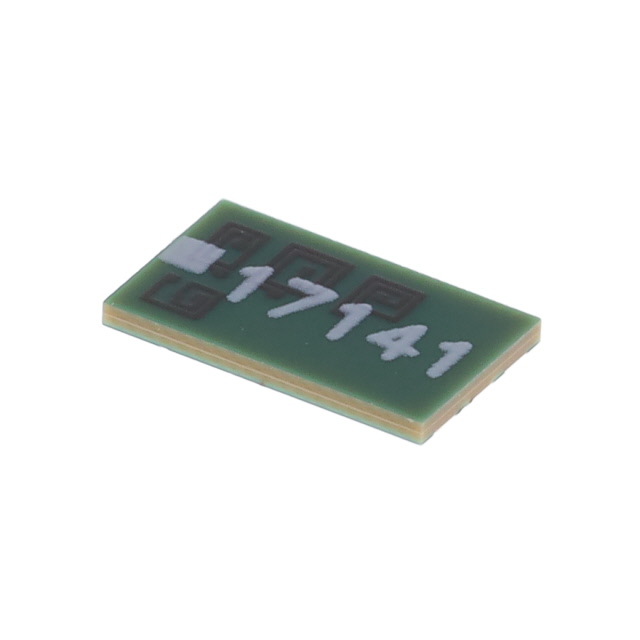

The HF0AA2410A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates with a center frequency of 2.41 GHz and supports a bandwidth extending from 2.41 GHz to 7 GHz. The component features a 50 Ohm impedance and utilizes a 16-ULGA surface mount package. Physical dimensions are specified as 6.58mm in length, 3.98mm in width, and a maximum height of 0.56mm.

Feature Summary

• High-pass filtering capability for radio frequency signal conditioning
• Surface mount construction utilizing 16-ULGA packaging
• Designed for operation within the 2.41 GHz to 7 GHz frequency range

Applications

• RF signal processing circuits
• Wireless communication systems
• Signal conditioning modules

Procurement Notes

Verify the specific datasheet version and ordering suffixes directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 16-ULGA package dimensions and termination styles align with your PCB layout requirements. Ensure compliance with RoHS standards if required by your manufacturing specifications. Cross-reference part numbers to avoid confusion with similar HF series components.

Selection Notes

Select this component when a high-pass filter is required for frequencies starting at 2.41 GHz up to 7 GHz. The 50 Ohm impedance matches standard RF system designs. The compact 16-ULGA surface mount package suits space-constrained layouts. Verify thermal and mechanical constraints associated with the small form factor during integration.

Part Context

This component belongs to the KYOCERA AVX HF series of passive RF filters. These devices utilize thin-film technology to achieve performance characteristics suitable for microwave and radio frequency applications. The series offers various configurations tailored for different frequency bands and impedance requirements within electronic systems.

Replacement Considerations

Consult official substitution guides for compatible high-pass filters within the same impedance and frequency range. Verify pinout compatibility and physical footprint alignment before replacing the original component with alternative part numbers.
