HF0AA2420A700

Overview

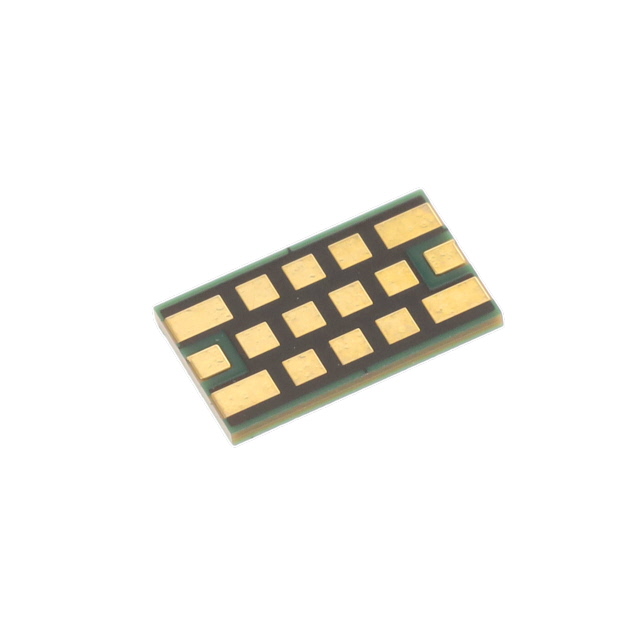

The HF0AA2420A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates within a frequency range of 2.42 GHz to 7 GHz, providing a bandwidth of 4.58 GHz. The component features a 50 Ohms impedance and utilizes SMD/SMT termination types. It is housed in a 16-ULGA package and supports board mounting. The device functions reliably within an operating temperature range of -55°C to +85°C.

Feature Summary

• High-pass filtering capability for RF signal conditioning
• Surface-mount design for automated assembly integration
• Wide operational bandwidth supporting broad frequency ranges

Applications

• RF front-end modules requiring high-pass characteristics
• Wireless communication systems operating above 2.42 GHz
• Signal conditioning circuits in microwave equipment

Procurement Notes

Verify the specific datasheet version for insertion loss specifications, as values may vary slightly between documentation sources. Confirm RoHS compliance status directly with the manufacturer or authorized distributors before finalizing procurement decisions. Ensure that the 16-ULGA package dimensions align with your PCB footprint requirements to prevent mounting issues during assembly.

Selection Notes

Select this component when a high-pass filter with a cutoff near 2.42 GHz is required for 50 Ohm systems. Consider the 16-ULGA package size for space-constrained designs. Evaluate the -55°C to +85°C temperature range against your environmental operating conditions. Compare insertion loss performance metrics if low-loss transmission is critical for your specific application architecture.

Part Context

This part belongs to the HF series of high-pass filters from KYOCERA AVX. These components are engineered for RF signal processing tasks. The series typically offers various cutoff frequencies and package options to suit different wireless standards. The HF0AA2420A700 specifically targets applications needing filtering above the 2.42 GHz threshold.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult KYOCERA AVX technical support for potential cross-references or newer generation alternatives that meet identical electrical and mechanical specifications.
