Product Detailed Parameters

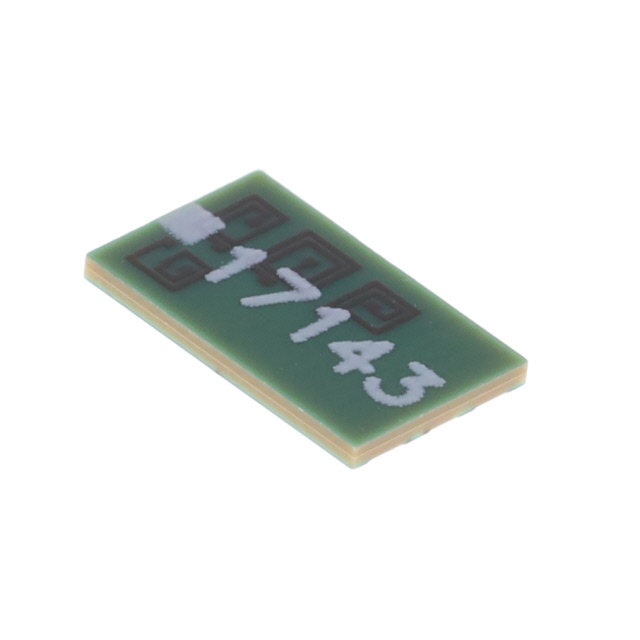

- Description：RF FILT HIGH PASS 2.47GHZ 16ULGA
- Series：HF
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：2.47GHz
- Bandwidth：-
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：1.2dB
- Mounting Type：Surface Mount
- Package / Case：16-ULGA
- Size / Dimension：0.259" L x 0.156" W (6.58mm x 3.98mm)
- Height (Max)：0.022" (0.56mm)
Download product information
Overview
The KYOCERA AVX HF0AA2470A700 is a high-pass filter operating at a center frequency of 2.47 GHz with a bandwidth of 4.03 GHz, extending to 6.5 GHz. It features a 50 Ohm impedance and utilizes surface-mount technology in a compact 2616 package. The component supports board mounting within an operating temperature range of -55°C to +85°C. Designed for signal conditioning, it employs multilayer organic construction to deliver precise RF performance in demanding electronic applications.
Feature Summary
- Multilayer organic construction for stable high-frequency operation
- Compact surface-mount design for space-constrained PCB layouts
- High-pass filtering capability for targeted signal conditioning
Applications
- Precision RF circuitry
- Embedded systems requiring signal integrity
- Industrial automation electronics
Procurement Notes
Verify current availability and lead times directly with the manufacturer or authorized distributors, as this item may be subject to special order status. Confirm RoHS compliance details and specific packaging quantities before finalizing procurement plans to ensure alignment with production requirements.
Selection Notes
Select this component when a high-pass filter with a 2.47 GHz cutoff is required in a small form factor. Ensure the application environment stays within the specified -55°C to +85°C temperature range. Verify that the 50 Ohm system impedance matches the surrounding circuit design for optimal signal transmission.
Part Context
This part belongs to the HF series of high-pass filters from KYOCERA AVX. These components utilize multilayer organic (MLO) technology to provide reliable signal conditioning in RF applications. The series is designed for modern electronics needing compact, high-performance filtering solutions.
Replacement Considerations
Consult official substitution guides for compatible alternatives. Verify electrical parameters such as cutoff frequency, bandwidth, and impedance match before replacing to maintain circuit performance integrity.
