HF0AA2480A700

Overview

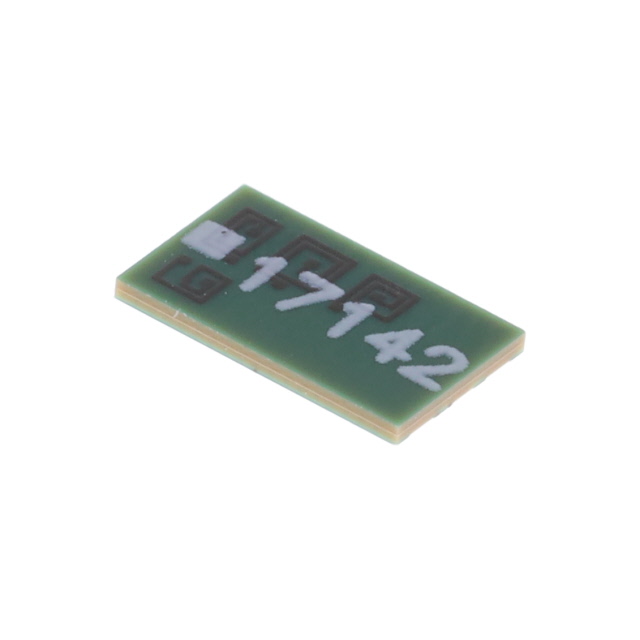

The KYOCERA AVX HF0AA2480A700 is a high-pass RF filter designed for signal conditioning applications. It operates within a frequency range of 2.48 GHz to 6 GHz, providing a bandwidth of 3.52 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a compact 16-ULGA surface mount package with dimensions of 6.58mm x 3.98mm x 0.56mm. The device exhibits an insertion loss of 1.2 dB and functions reliably across a temperature range of -55°C to +85°C.

Feature Summary

• Utilizes thin-film multilayer technology for superior high-frequency performance
• Provides effective signal conditioning through high-pass filtering characteristics
• Designed for compact integration via small surface-mount packaging

Applications

• Wireless communication systems requiring RF signal filtering
• Test and measurement equipment operating in the GHz range
• Industrial electronics utilizing signal conditioning components

Procurement Notes

Verify current availability status directly with authorized distributors or the manufacturer, as supply levels may fluctuate. Confirm that the specific part number matches your design requirements regarding frequency response and physical dimensions. Ensure compliance with relevant environmental regulations such as RoHS before finalizing procurement decisions for production use.

Selection Notes

Select this component when a high-pass filter with a cutoff near 2.48 GHz is required for GHz-range applications. Consider the 16-ULGA package size for space-constrained designs. Evaluate the 50 Ohm impedance match against system requirements. Assess the thermal operating range to ensure suitability for the intended environmental conditions during operation.

Part Context

This component belongs to the HF series of high-pass filters manufactured by KYOCERA AVX. These devices are engineered using thin-film multilayer technology to deliver consistent performance in radio frequency applications. The series supports various frequency bands and package configurations to meet diverse signal conditioning needs in modern electronic systems.

Replacement Considerations

Cross-reference with other KYOCERA AVX HF series parts for similar frequency ranges. Verify compatibility with alternative suppliers offering equivalent high-pass filters in the 2.48 GHz to 6 GHz band. Ensure mechanical footprint and electrical specifications align before substituting.
