HF0AA4430A700

Overview

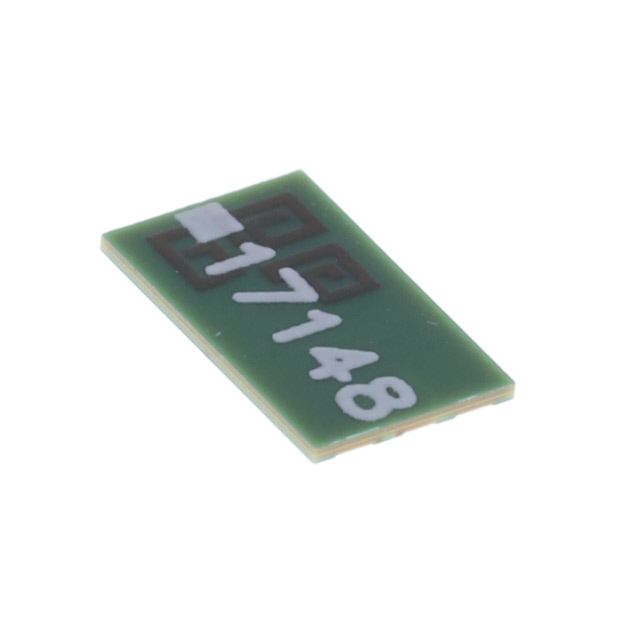

The HF0AA4430A700 is a high-pass filter from the KYOCERA AVX HF series, designed for signal conditioning applications. It operates within a frequency range of 4.43 GHz to 7 GHz, providing a bandwidth of 2.57 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a 2616 (6640 metric) package and supports an operating temperature range from -55 C to +85 C.

Feature Summary

• High-frequency performance based on thin-film multi-layer technology
• Designed for precise signal conditioning in RF circuits
• Compact surface-mount form factor for space-constrained designs

Applications

• RF signal filtering in communication systems
• Signal conditioning in microwave circuits
• High-frequency noise suppression in electronic devices

Procurement Notes

Verify current availability and lead times directly with authorized distributors or the manufacturer, as this component may be subject to factory special order requirements. Confirm RoHS compliance status and specific packaging details prior to procurement to ensure alignment with project specifications and supply chain constraints.

Selection Notes

Select this component when a high-pass filter with a cutoff starting at 4.43 GHz is required. Ensure the design accommodates the 2616 package dimensions and 50 Ohm system impedance. Verify that the operating environment falls within the specified -55 C to +85 C temperature range for reliable performance.

Part Context

This part belongs to the KYOCERA AVX HF series of high-pass filters. These components are engineered for RF and microwave applications, leveraging thin-film technology to achieve stable performance at high frequencies. The series offers various frequency options to suit different signal conditioning needs in modern electronic systems.

Replacement Considerations

Check for direct substitutes within the HF series with similar cutoff frequencies and package sizes. Verify electrical compatibility, including impedance and insertion loss, before considering alternative part numbers from other manufacturers.
