HF0AA4500A700

Overview

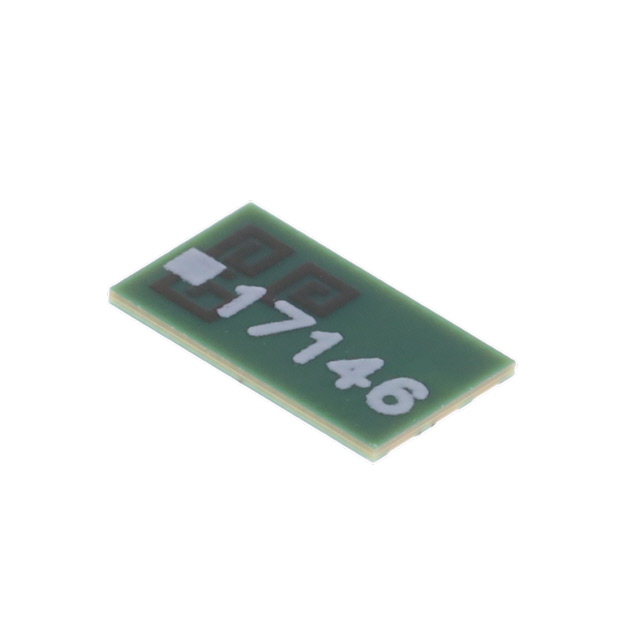

The HF0AA4500A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates within a frequency range of 4.27 GHz to 8 GHz, providing a bandwidth of 3.73 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a 2616 (6640 metric) package and supports an operating temperature range from -55°C to +85°C. The insertion loss is specified at 0.83 dB.

Feature Summary

• Utilizes thin-film multilayer technology for superior high-frequency performance
• Designed for surface-mount board integration with standardized dimensions
• Provides stable signal filtering within defined microwave frequency bands

Applications

• Microwave communication systems
• Radio frequency signal conditioning
• High-frequency circuit protection

Procurement Notes

Verify current availability and lead times directly with authorized distributors or the manufacturer, as production cycles may vary. Confirm that the specific package type and termination style match your PCB design requirements. Ensure environmental ratings meet operational standards. Cross-reference datasheet specifications for precise electrical parameters before finalizing procurement decisions.

Selection Notes

Select this component when a high-pass filter with a cutoff near 4.27 GHz is required. The 2616 package size suits compact designs needing SMT assembly. Verify impedance matching to 50 Ohms in your system. Consider the thermal range if operating in extreme environments. Compare insertion loss specifications against other filters in the HF series for optimal signal integrity.

Part Context

This part belongs to the KYOCERA AVX HF series of high-pass filters. These components are engineered using thin-film technology to deliver consistent performance in microwave applications. The series offers various cutoff frequencies while maintaining standard packaging for automated manufacturing processes.

Replacement Considerations

Consult official substitution guides for compatible parts within the same series. Verify identical frequency ranges, impedance, and package dimensions before swapping. Generic equivalents may not match the thin-film construction characteristics.
