HF0AA6380A700

Overview

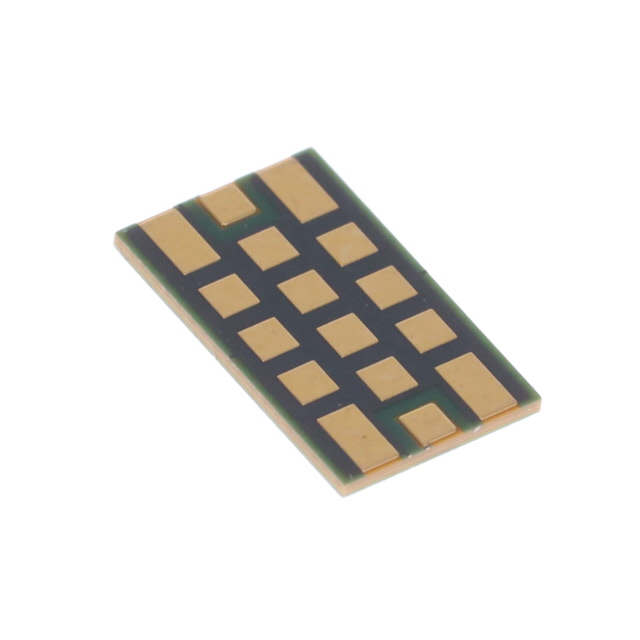

The HF0AA6380A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for surface-mount applications. It operates with a cutoff frequency of 6.38 GHz and supports frequencies up to 8 GHz. The device features an insertion loss of 1.2 dB and utilizes a 16-ULGA package measuring 6.58 mm x 3.98 mm x 0.56 mm.

Feature Summary

• Multilayer Organic (MLO) construction for compact integration
• High-pass filtering capability above 6.38 GHz
• Surface-mount design for automated assembly

Applications

• RF signal conditioning in wireless communication systems
• Filtering applications requiring high-frequency passbands
• Integration into compact RF modules using MLO technology

Procurement Notes

Verify current availability status as the component may be obsolete or restricted. Confirm package dimensions and electrical specifications against official datasheets before procurement. Ensure compatibility with existing circuit designs regarding impedance and thermal requirements.

Selection Notes

Select this component for applications requiring a 6.38 GHz high-pass response within a small footprint. Consider the 1.2 dB insertion loss and 16-ULGA package size for board space constraints. Validate performance against specific system frequency requirements and environmental operating conditions.

Part Context

This part belongs to the HF series of RF filters from KYOCERA AVX. These components utilize Multilayer Organic (MLO) technology, offering solutions for high-frequency filtering needs in modern electronic devices. The series provides various cutoff frequencies and package options for diverse RF applications.

Replacement Considerations

Official sources list HF0AA6510A700 as an obsolete product alongside HF0AA6380A700. Verify if alternative models within the HF series meet the required 6.38 GHz cutoff and 16-ULGA package specifications.
