HF0AA6510A700

Overview

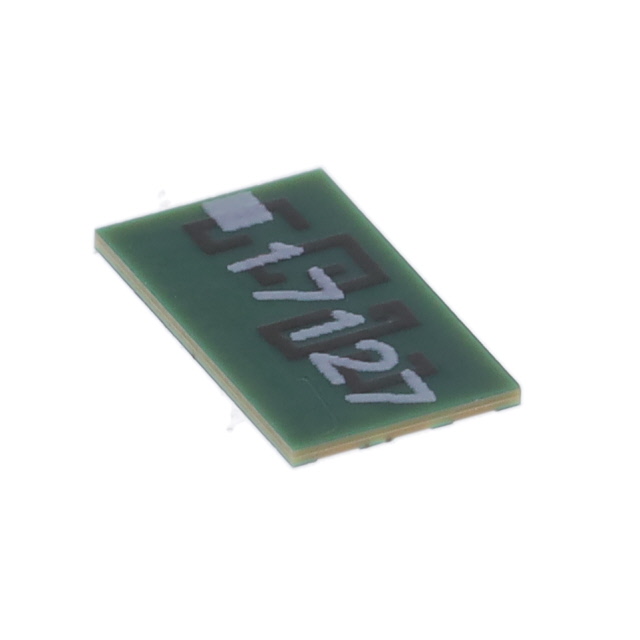

The HF0AA6510A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates within a frequency range of 6.51 GHz to 8 GHz with a bandwidth of 1.49 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types. Packaged in a 2616 (6640 metric) footprint, it supports board mounting and functions reliably between -55°C and +85°C. The device exhibits an insertion loss of 0.83 dB and belongs to the HF series.

Feature Summary

• High-pass filtering capability optimized for radio frequency signal conditioning
• Robust construction utilizing thin-film technology for superior high-frequency performance
• Surface-mount design compatible with automated assembly processes

Applications

• Radio frequency communication systems
• Signal conditioning circuits
• Electronic warfare equipment
• Microwave subsystems

Procurement Notes

Verify current availability status directly with authorized distributors or the manufacturer, as this component may be subject to specific ordering requirements or limited stock conditions. Confirm RoHS compliance details and lead times prior to final procurement decisions. Ensure that the specified package dimensions and termination types align with existing PCB layouts and manufacturing capabilities to prevent integration issues during production.

Selection Notes

Select this component when designing circuits requiring precise high-pass filtering in the 6.51 GHz to 8 GHz range. Consider the 50 Ohm impedance matching and low insertion loss characteristics for efficient signal transmission. Evaluate the thermal operating range and surface-mount package size against spatial constraints and environmental conditions of the target application to ensure reliable long-term performance.

Part Context

This part belongs to the HF series of high-pass filters from KYOCERA AVX, which utilize thin-film multilayer technology. These components are engineered for demanding RF environments, offering stable electrical characteristics and durability. The series supports various frequency bands and package sizes, catering to diverse microwave and millimeter-wave applications across communications and defense sectors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative high-pass filters based on identical frequency ranges, impedance values, and physical package dimensions before substitution.
