HF0BA0950A700

Overview

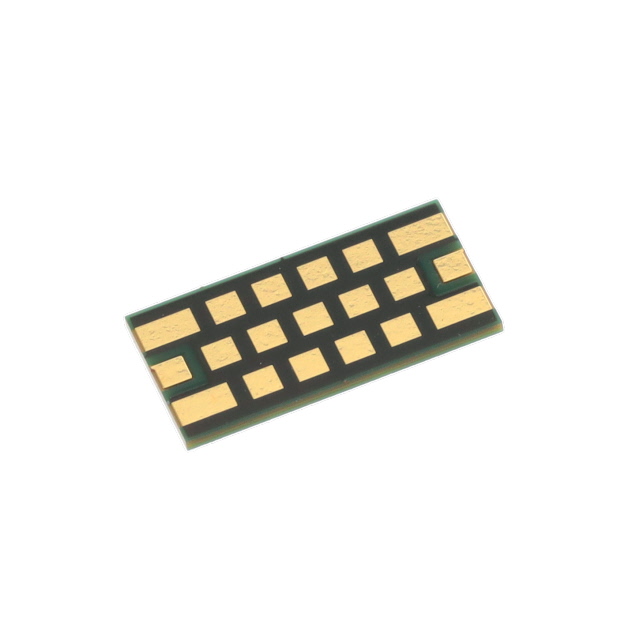

The HF0BA0950A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 950 MHz with a bandwidth of 1.05 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination styles for surface mount installation. It is housed in a compact package suitable for automated assembly processes. The device exhibits an insertion loss of 1.2 dB, ensuring efficient signal transmission within its passband while attenuating lower frequencies.

Feature Summary

• High-pass filtering capability centered at 950 MHz
• Surface mount design for automated PCB assembly
• Low insertion loss for effective signal integrity

Applications

• RF signal conditioning circuits
• Wireless communication systems
• Base station equipment

Procurement Notes

Verify component availability as this part may be classified as obsolete or not recommended for new designs. Confirm current stock levels with authorized distributors before initiating orders. Ensure that the procurement process accounts for potential supply chain constraints associated with discontinued or end-of-life electronic components to prevent production delays.

Selection Notes

Select this component for applications requiring precise high-pass filtering at 950 MHz. Consider the 1.2 dB insertion loss when designing for signal attenuation budgets. Ensure the PCB layout supports the specific SMD footprint requirements. Evaluate alternative parts if long-term supply stability is a critical project constraint due to the component's obsolete status.

Part Context

This component belongs to the KYOCERA AVX RF filter portfolio, which provides solutions for various frequency ranges. The HF series typically utilizes thin-film technology for stable performance. This specific model addresses niche requirements in the 950 MHz band, serving as a specialized solution for legacy or specific legacy-compatible hardware designs requiring defined spectral characteristics.
