HF0BA1340A700

Overview

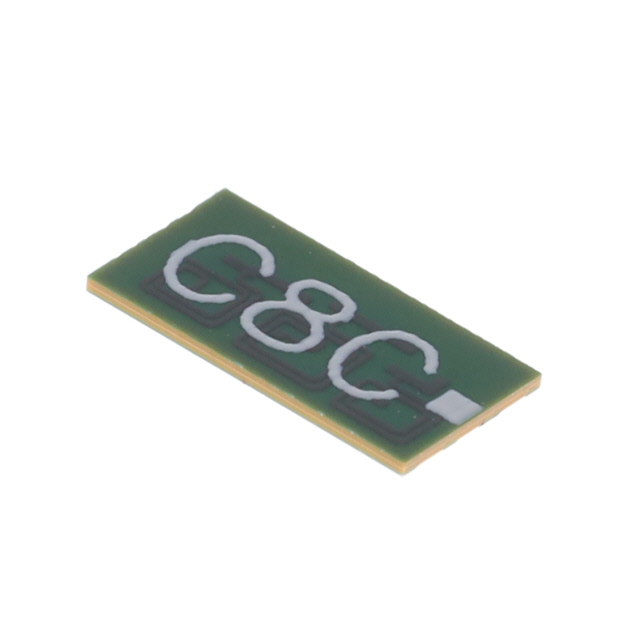

The HF0BA1340A700 is a high-pass filter from the KYOCERA AVX HF series, designed for signal conditioning applications. It operates at a center frequency of 1.34 GHz with a bandwidth of 1.05 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a 3116 (7840 metric) package and supports an operating temperature range from -55 C to +85 C. The device exhibits an insertion loss of 0.74 dB.

Feature Summary

• Utilizes thin-film multilayer technology for high-frequency performance
• Designed for surface-mount board integration
• Provides high-pass filtering characteristics

Applications

• Signal conditioning circuits
• Radio frequency systems
• Electronic equipment requiring high-pass filtering

Procurement Notes

Verify current availability and lead times directly with authorized distributors or the manufacturer, as production cycles may vary. Confirm RoHS compliance status through official documentation before procurement. Ensure ordering quantities align with factory packaging specifications to avoid partial reel issues. Cross-reference datasheet revisions to ensure technical parameters match design requirements.

Selection Notes

Select this component when a high-pass filter with a 1.34 GHz cutoff is required in a compact 3116 footprint. Consider the 50 Ohm impedance matching for RF system integration. Evaluate the -55 C to +85 C operating range against environmental conditions. Compare insertion loss specifications against system sensitivity requirements to ensure signal integrity is maintained within acceptable limits.

Part Context

This part belongs to the KYOCERA AVX HF series of high-pass filters. These components are engineered using thin-film technology to deliver robust performance in radio frequency applications. The series offers various frequency options within standardized surface-mount packages, facilitating consistent design practices across different product lines and frequency bands.

Replacement Considerations

Check for other HF series variants with similar cutoff frequencies if exact matches are unavailable. Verify package dimensions and pin configurations for direct replacement compatibility. Ensure electrical parameters such as impedance and insertion loss remain within acceptable tolerances for the specific application circuit.
