HF0BA1390A700

Overview

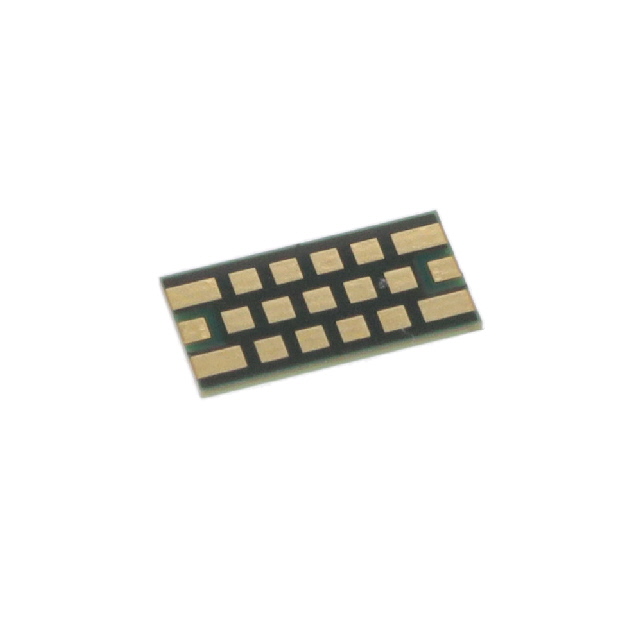

The HF0BA1390A700 is a high-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 1.39 GHz with a bandwidth of 1.2 dB. The component features a 50 Ohm impedance and utilizes surface mount technology (SMD/SMT) for board mounting. It is housed in a compact 19-ULGA package, measuring 7.79 mm in length, 3.98 mm in width, and 0.56 mm in height. The device supports an operating temperature range from -55°C to +85°C and complies with RoHS3 standards.

Feature Summary

• High-frequency performance utilizing thin-film multilayer technology
• Robust structure suitable for automated assembly processes
• Compact surface-mount design for space-constrained PCB layouts

Applications

• RF signal conditioning in communication systems
• High-frequency filtering in electronic devices
• Signal processing in automotive electronics

Procurement Notes

Verify the specific datasheet version and lead times directly with authorized distributors or the manufacturer, as production cycles may vary. Confirm that the 19-ULGA package dimensions align with your PCB footprint requirements. Ensure compliance with RoHS3 regulations if required by your project specifications. Check for any discontinuation notices or lifecycle status updates before finalizing procurement plans.

Selection Notes

Select this component when a high-pass filter with a 1.39 GHz cutoff is required. The 19-ULGA package offers a small form factor suitable for dense circuit designs. Consider the -55°C to +85°C operating range for environmental suitability. Verify that the 50 Ohm impedance matches your system requirements. Evaluate the insertion loss characteristics against your signal integrity needs.

Part Context

This part belongs to the HF series of high-pass filters from KYOCERA AVX. These components are engineered for RF applications requiring precise frequency selection. The series leverages thin-film technology to deliver consistent performance across various industrial and commercial sectors. The HF0BA1390A700 specifically targets the 1.39 GHz frequency band.

FAQ

What is the package type for the HF0BA1390A700?

The HF0BA1390A700 uses a 19-ULGA surface-mount package.

What is the operating temperature range?

The component operates within a temperature range of -55°C to +85°C.
